| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF |
| Payment Terms: | Paypal, L/C, T/T, WU |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 50 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 40000kg heavy-duty amphibious working capacity | Excavation Reach: | Maximum digging reach up to 18.7m |
|---|---|---|---|
| Bucket Capacity: | Standard 1.3m³ dredging bucket configuration | Engine Configuration: | Cummins QSB6.7 / Isuzu 6HK1 turbocharged engine |
| Hydraulic System: | Kawasaki T5V140DT variable plunger pump | Pontoon Structure: | Reinforced floating pontoon undercarriage design |
| Travel Drive: | Four DOOSAN TM40VC travel motors installed | Ground Pressure: | Ultra-low ground pressure of 0.14kg/cm² |
| Application Range: | Suitable for swamp, river, marsh, and coastal engineering | Optional Equipment: | Additional pontoon and spud for deep water stability |

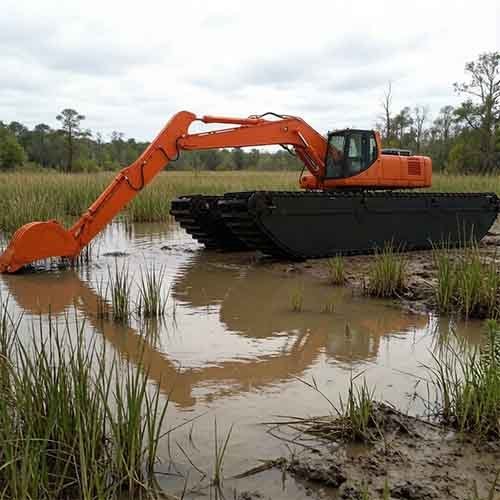

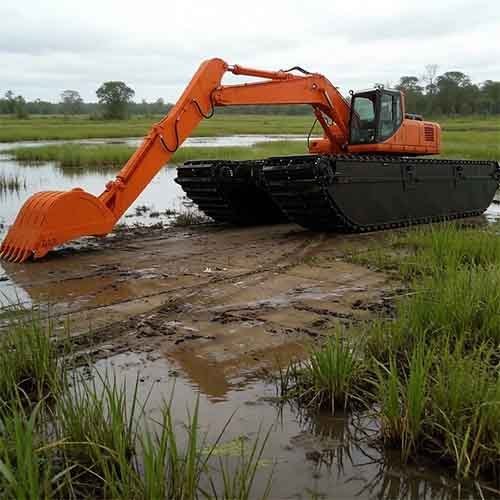

The HEKING HK400SD amphibious excavator is a professional heavy-duty machine engineered for challenging wetland, swamp, river dredging, and coastal engineering operations. Designed with a reinforced floating pontoon undercarriage and powerful hydraulic system, this 40 ton amphibious excavator delivers reliable performance in environments where standard crawler excavators cannot operate safely.
This amphibious excavator is widely used in river dredging projects, marshland construction, flood control work, lake maintenance, coastal reinforcement, environmental restoration, and deep water excavation. With its advanced floating structure and low ground pressure design, the HK400SD can travel efficiently across mud, wetlands, peat soil, shallow water, and unstable terrain.
The long reach working range allows operators to perform excavation and dredging operations from safer positions while improving efficiency in difficult environments. For contractors handling infrastructure development, water conservancy projects, or wetland restoration work, the HK400SD provides a dependable and cost-effective solution.
The floating pontoon system is one of the core advantages of the HK400SD swamp excavator. The machine adopts a heavy-duty amphibious pontoon structure engineered for stability and buoyancy during water-based operations. The reinforced pontoon design improves flotation performance while maintaining excellent machine balance during excavation.
The undercarriage uses three chain strands on each side combined with four travel motors to provide strong traction and stable movement across soft terrain. This configuration helps prevent sinking in marshes and muddy construction areas.
Compared with traditional excavators, the HK400SD wetland excavator significantly reduces ground pressure to only 0.14kg/cm², minimizing environmental impact and improving mobility on unstable surfaces.
For deep water working conditions, additional pontoons and spuds are available as optional configurations. These options improve operational stability and are especially suitable for lake dredging, coastal engineering, and waterway maintenance projects.
The HK400SD amphibious excavator is equipped with a high-performance hydraulic system designed for demanding excavation applications. The Kawasaki T5V140DT variable plunger pump delivers efficient hydraulic flow and stable pressure output, ensuring smooth machine operation under heavy workloads.
The hydraulic configuration provides excellent digging force and stable multi-function operation during dredging work. Combined with the powerful Cummins or Isuzu engine system, the machine achieves high productivity while maintaining fuel efficiency.
The hydraulic system supports continuous operation in difficult environments such as river sediment removal, swamp excavation, canal cleaning, and reservoir maintenance.
The fixed plunger slew motor and DOOSAN travel motors enhance machine responsiveness and control accuracy, allowing operators to work effectively even in narrow or unstable job sites.
The HK400SD long reach amphibious excavator is widely used in water conservancy and marine engineering industries. Its large working range and floating undercarriage make it suitable for multiple applications including:
River dredging projects
Flood prevention engineering
Wetland restoration work
Coastal reinforcement projects
Lake and reservoir maintenance
Marshland excavation
Environmental protection operations
Pipeline installation in wetlands
Canal cleaning and sediment removal
The machine's long reach boom improves operational coverage while reducing repositioning frequency. This helps contractors improve efficiency and reduce fuel consumption on large-scale projects.
Its durable structure and reliable hydraulic system also make it suitable for long-term rental projects and international contracting operations.
HEKING is a professional amphibious excavator manufacturer with extensive experience in wetland and dredging equipment production. The company focuses on quality control, advanced manufacturing technology, and reliable after-sales support for global customers.
The HK400SD amphibious excavator is manufactured using strict production standards and tested before delivery to ensure operational reliability. HEKING also provides customized solutions according to project requirements, including optional pontoons, extended booms, dredging attachments, and special configurations for deep water environments.
The company supports international buyers with stable production schedules and export services for Europe, the Middle East, Southeast Asia, Africa, and South America.
Production time for the HK400SD is generally within 50 days after receipt of the down payment.
Payment terms:
30% down payment by T/T
70% balance paid before delivery
Heavy-duty 40 ton operating capacity
Long reach excavation for dredging efficiency
Reinforced floating pontoon undercarriage
Ultra-low ground pressure for swamp operation
Four travel motors for strong traction
Reliable Cummins and Kawasaki hydraulic system
Suitable for deep water engineering projects
Optional additional pontoon and spud system
Stable performance in extreme wetland conditions
| Item | Specification |
| Product Model | HK400SD |
| Operating Weight | 40000kg |
| Bucket Capacity | 1.3m³ |
| Boom Length | 6733mm |
| Arm Length | 4520mm |
| Chains | 3 |
| Ground Pressure | 0.14kg/cm² |
| Item | Specification |
| Engine Model | Cummins C8.3 / Isuzu 6HK1 |
| Engine Type | Inter-cooled turbo |
| Power | 183.9kW / 2200rpm |
| Max Torque | 949N.m / 1500rpm |
| Cylinders | 6 |
| Displacement | 7.79L |
| Item | Specification |
| Pump Type | Variable plunger pump |
| Pump Model | Kawasaki T5V140DT |
| Max Displacement | 2×140cm³/r |
| Working Pressure | 32Mpa |
| Slew Motor | Fixed plunger |
| Travel Motor | Variable plunger |
| Travel Motor Model | DOOSAN TM40VC |
| Item | Specification |
| Slew Speed | 9rpm |
| Travel Speed High/Low | 2.1 / 1.2km/h |
| Gradeability | 70% |
| Tractive Effort | 4×116kN |
| Bucket Digging Force | 135kN |
| Arm Digging Force | 123.8kN |
| Item | Specification |
| Fuel Tank Capacity | 560L |
| Hydraulic Tank Capacity | 250L |
| Item | Specification |
| Pontoon Length | 11400mm |
| Pontoon Width | 1800mm |
| Pontoon Height | 1913mm |
| Track Gauge | 3523mm |
| Ground Clearance | 1228mm |
| Platform Clearance | 2090mm |
| Item | Specification |
| Overall Length | 12137mm |
| Overall Width | 5500mm |
| Overall Height | 4144mm |
| Boom Transport Height | 3650mm |
| Rear Swing Radius | 3140mm |
| Upper Structure Width | 2950mm |
| Ground Length | 7642mm |
| Item | Specification |
| Max Digging Reach | 12049mm |
| Reach on Ground | 11687mm |
| Max Digging Depth | 7396mm |
| Vertical Digging Depth | 6733mm |
| Max Digging Height | 12127mm |
| Max Dumping Height | 9018mm |
| Front Slewing Radius | 3848mm |
A: The HK400SD is mainly used for river dredging, swamp excavation, wetland construction, coastal engineering, and flood control projects.
A: Yes. The machine can be equipped with additional pontoons and spuds for improved stability during deep water operations.
A: The excavator is available with Cummins C8.3 or Isuzu 6HK1 turbocharged engines depending on customer requirements.
A: Its low ground pressure, floating pontoon undercarriage, and reinforced travel system allow stable operation on soft and muddy terrain.
A: Yes. The Kawasaki hydraulic pump provides stable hydraulic performance and strong digging force for continuous dredging operations.
A: Production is generally completed within 50 days after receiving the 30% down payment.
A: Payment terms are 30% down payment by T/T and 70% balance before delivery.
A: Yes. Customized pontoons, boom lengths, dredging attachments, and deep water solutions are available.
A: The HK400SD is widely exported to Europe, the Middle East, Southeast Asia, Africa, and South America.
A: Yes. HEKING supports international buyers with manufacturing, export documentation, and technical assistance.
