| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | Within 45 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 15,000 kg for stable wetland and swamp operations | Maximum Digging Reach: | Up to 8.99 m working range for dredging projects |
|---|---|---|---|
| Bucket Capacity: | Standard 0.25 m³ bucket for mud and sediment excavation | Engine Configuration: | Yanmar 4TNV98T turbocharged diesel engine |
| Hydraulic Pump System: | Toshiba PVC90RC06 variable plunger pump | Travel Drive System: | Four DOOSAN travel motors for enhanced traction |
| Undercarriage Design: | Hydraulic extendable pontoon structure | Ground Pressure: | Low 0.13 kg/cm² for soft terrain stability |
| Machine Width Range: | Adjustable 3500-4548 mm transport and working width | Optional Equipment: | Additional pontoons and spuds for deep water operation |

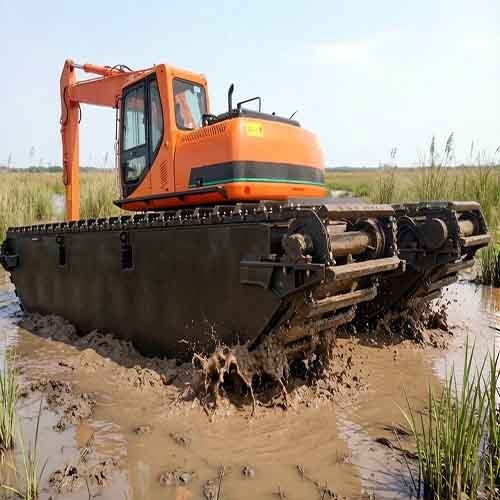

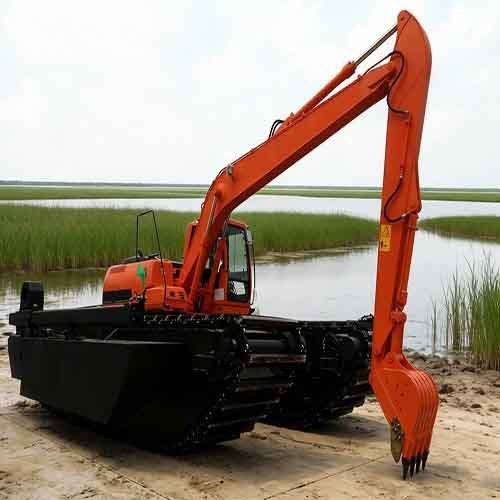

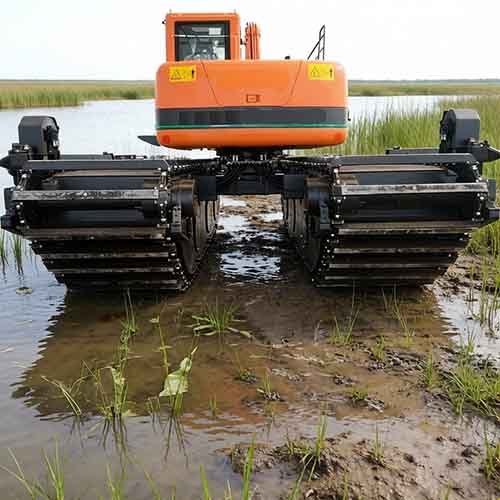

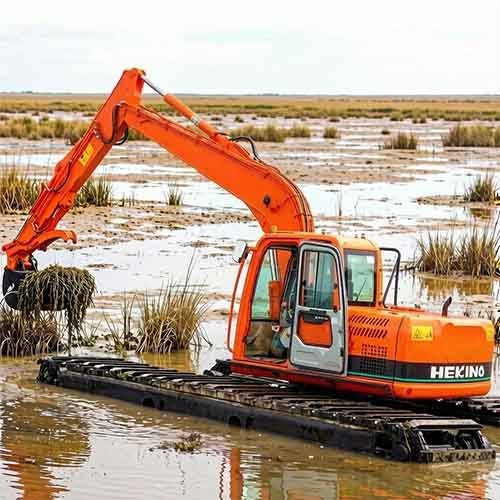

The HK150SD swamp excavator is a compact and highly efficient amphibious excavator designed for demanding wetland, marsh, riverbank, and soft ground applications. Engineered for contractors working in difficult terrain conditions, this swamp excavator combines excellent flotation performance, stable operation, and reliable hydraulic power to improve productivity in areas where conventional excavators cannot operate safely.
With an operating weight of 15 tons and a low ground pressure design, the machine performs efficiently on unstable surfaces including mud, peat, wetlands, and shallow water environments. The large buoyancy pontoons provide enhanced flotation while the hydraulic extendable undercarriage improves machine stability during excavation and travel operations.
This swamp excavator is widely used in Europe, the Middle East, Southeast Asia, and Africa for river dredging, environmental restoration, flood control, oil and gas pipeline construction, and wetland infrastructure projects.
Designed for swamp, marsh, and wetland construction projects
Four travel motors improve mobility in muddy environments
Low ground pressure minimizes sinking risk on soft terrain
Hydraulic extendable undercarriage increases operational stability
Strengthened track shoes and chains enhance durability
Large buoyancy pontoons improve floating performance
Reliable Yanmar engine delivers fuel-efficient performance
Suitable for dredging, pipeline, and flood control projects
Optional deep-water accessories available for customized applications
The machine is equipped with a Yanmar 4TNV98T turbocharged diesel engine that delivers stable power output and fuel-efficient performance under challenging working conditions. Combined with the Toshiba PVC90RC06 hydraulic pump and Toshiba control valve system, the excavator provides smooth hydraulic response, accurate control, and reliable digging force.
The four travel motor configuration improves maneuverability and traction on soft ground. Compared with conventional crawler excavators, the four-motor travel system distributes power more effectively and helps maintain stability in swampy conditions.
The strengthened track shoes and reinforced chains are designed for long-term durability in abrasive mud, sand, and wet environments. This structure reduces maintenance frequency and extends operational service life.
The HK150SD swamp excavator is specifically designed for projects where low ground pressure and floating capability are essential. The adjustable undercarriage width allows operators to improve stability according to different terrain conditions.
Typical applications include:
River dredging projects
Swamp and marsh excavation
Wetland environmental restoration
Irrigation canal maintenance
Oil and gas pipeline construction
Flood prevention engineering
Lake and pond cleaning
Coastal maintenance projects
Soft ground foundation work

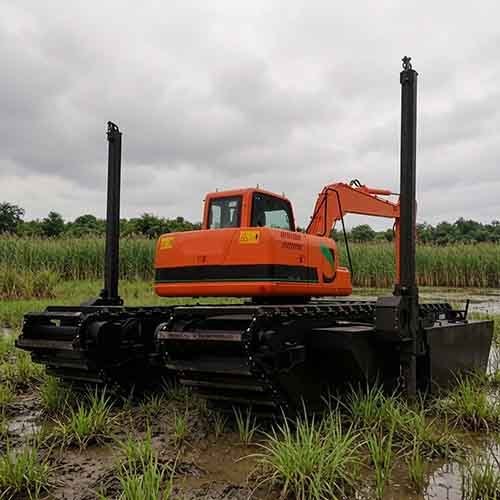

The optional additional pontoon and spud system allows the excavator to operate in deeper water conditions, making it suitable for larger dredging and aquatic engineering projects.
The pontoon undercarriage structure is engineered for durability and stability in harsh environments. The large buoyancy system improves floating capability while maintaining machine balance during excavation.
Key structural advantages include:
Heavy-duty pontoon structure
Hydraulic extendable chassis
Reinforced chain system
Stable center of gravity design
Corrosion-resistant construction
High flotation performance

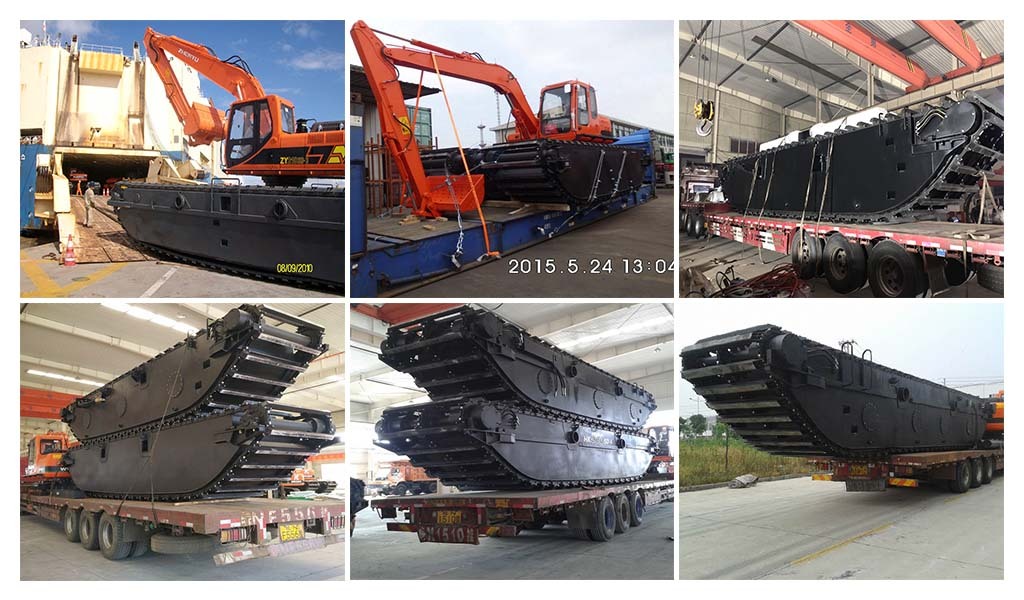

The compact overall dimensions also allow easier transportation between job sites compared with larger amphibious excavators.
This swamp excavator is suitable for construction companies, dredging contractors, government infrastructure projects, and rental equipment businesses. The machine is designed to meet demanding project requirements in Europe and the Middle East where reliability, low maintenance cost, and operational flexibility are critical.
The excavator can be customized according to project requirements, including optional pontoons, spuds, and working attachments.
Production time is generally within 45 days after receipt of the down payment. Payment terms are 30% T/T deposit with the remaining 70% balance before delivery.
| Weight | 15000KG |
| Standard bucket capacity | 0.25m³ |
| Boom length | 4500mm |
| Arm length | 3000mm |
| Chains | 2 |
| Engine model | Yammar 4TNV98T |
| Type | inter-cooled turbo |
| Power | 54.3kW/2200rpm |
| Max.torque | 301N m / 1650rpm |
| No.of cylindar | 4 |
| Displacement | 3.319L |
| Type | Variable plunger pump |
| Max.displacement | 90cm3/r |
| Working pressure | 26.5Mpa |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Slew speed | 12rpm |
| Min.slew radius | 2257mm |
| Max.travel speed high/low | 3.79/2.33km/h |
| Gradeability | 35° |
| Tracktive effort | 112.2kN |
| Max.digging force of bucket | 49kN |
| Max.digging force of arm | 43.4kN |
| Ground pressure | 0.13kg/cm2 |
| Fuel tank capacity | 300L |
| Hydraulic tank capacity | 210L |
| Item | Standard(mm) |
| Length of pontoon | 6640 |
| Ground clearance of platform | 1474 |
| Overall height | 3294 |
| Boom transport height | 3294 |
| Overall length | 9009 |
| Rear swing radius | 2130 |
| Track gauge | 2050-3100 |
| Overall width | 3500-4548 |
| Width of pontoon | 1298 |
| Min.ground clearance | 717 |
| Height of pontoon | 1420 |
| Width of upper structure | 2207 |
| Ground length | 3500 |
| Item | Standard(mm) |
| Max.digging reach | 8996 |
| Max.digging reach on ground | 8772 |
| Max.digging depth | 5879 |
| Max.vertical digging depth | 4796 |
| Max.digging height | 8443 |
| Max.dumping height | 6457 |
| Min.front slewing radius | 3524 |
| Engine | Yanmar 4TNV98T |
| Pump | Toshiba PVC90RC06 |
| Valve | Toshiba IB18-8021 |
| Swing motor | Toshiba SG025E-136 |
| Travel motor | DOOSAN TM22VC |
| Travel motor no. | 4 |
Q1: What is a swamp excavator mainly used for?
A: A swamp excavator is mainly used for wetland construction, river dredging, marsh excavation, flood control projects, and soft ground engineering where conventional excavators cannot operate efficiently.
Q2: Can this excavator work in deep water conditions?
A: Yes. Optional additional pontoons and spuds are available for deeper water applications and improved stability.
Q3: What makes this swamp excavator suitable for muddy terrain?
A: The low ground pressure design, large buoyancy pontoons, and four travel motors help the machine operate safely on soft and unstable ground.
Q4: Is the undercarriage adjustable?
A: Yes. The machine features a hydraulic extendable undercarriage that improves stability and transportation flexibility.
Q5: What engine is installed in this machine?
A: The excavator uses a Yanmar 4TNV98T turbocharged diesel engine for reliable and fuel-efficient performance.
Q6: Can the machine be customized for different projects?
A: Yes. Optional configurations such as additional pontoons, spuds, and customized attachments are available.
Q7: What industries commonly use swamp excavators?
A: Common industries include dredging, oil and gas, environmental restoration, civil engineering, mining, and water management.
Q8: What is the production lead time?
A: Production is generally completed within 45 days after receiving the down payment.
