| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 45 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 35-36 ton heavy-duty amphibious excavator platform | Maximum Digging Reach: | 15.5m long reach working range for dredging operations |
|---|---|---|---|
| Bucket Capacity: | 0.5m³ standard dredging bucket configuration | Engine Configuration: | Mitsubishi 4M50-TLC3J turbocharged diesel engine |
| Hydraulic Pump Type: | Doosan T5V112 variable plunger hydraulic pump | Travel System: | Four DOOSAN TM40VC travel motors for enhanced traction |
| Pontoon Structure: | Q345B steel pontoon with reinforced hull construction | Ground Pressure: | Low ground pressure of 0.14kg/cm² for swamp terrain |
| Optional Configuration: | Additional pontoon and spud for deep-water stability | Production Lead Time: | Within 45 days after receipt of down payment |

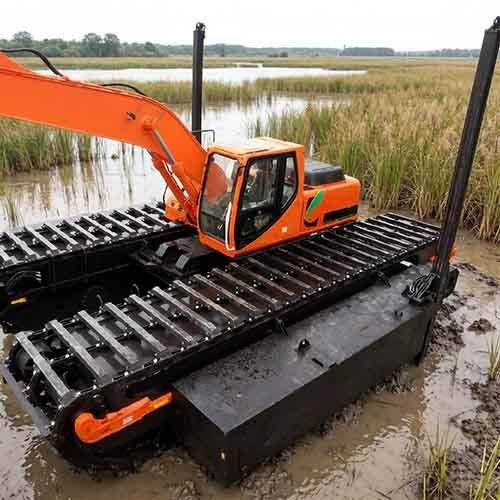

The HEKING HK300SDA swamp excavator is a professional long reach amphibious excavator developed for demanding environments where conventional excavators cannot operate efficiently. Designed with a reinforced amphibious undercarriage and high buoyancy pontoon structure, this machine performs reliably in wetlands, marshes, muddy riverbanks, shallow water areas, and coastal construction zones.
With a total operating weight of 36 tons and a maximum digging reach of over 15 meters, the HK300SDA is ideal for large-scale river dredging, flood control engineering, environmental restoration, and deep-water excavation projects. The machine combines stability, flotation capability, and hydraulic performance to meet the operational demands of contractors across Europe, the Middle East, Southeast Asia, and Africa.
This swamp excavator is widely used in projects where low ground pressure and superior mobility are critical. Its reinforced pontoon system distributes machine weight effectively, allowing stable operation on extremely soft terrain while minimizing sinking risks.
The HK300SDA features an 8600mm boom and a 6260mm arm, delivering exceptional working range for deep dredging and long-distance excavation. The maximum digging reach of 15426mm and digging depth exceeding 10 meters make this machine highly suitable for river maintenance, canal cleaning, sediment removal, and shoreline reinforcement projects.
Compared with standard excavators, this long reach swamp excavator significantly improves operational efficiency in difficult access areas. Operators can complete excavation work from safer positions while reducing the need for repositioning during dredging operations.
The 0.5m³ bucket capacity is optimized for wetland excavation and sludge removal, ensuring efficient material handling without compromising machine stability.
The amphibious undercarriage is one of the core advantages of the HK300SDA. The machine uses four travel motors for stronger traction and enhanced maneuverability in soft ground conditions. The reinforced track shoes and 40Cr chain rollers improve durability during continuous operation in abrasive mud and water environments.
Manufactured from high-strength Q345B steel, the pontoons are engineered for long-term durability and corrosion resistance. The hull structure includes:
Top plate thickness: 6mm
Side plate thickness: 6mm
Bottom plate thickness: 8mm
The large buoyancy design enhances flotation performance and provides greater operational safety during deep-water projects.
For contractors handling more challenging water conditions, optional additional pontoons and spuds are available to further improve stability and anchoring capability.
The HK300SDA swamp excavator is equipped with a Mitsubishi 4M50-TLC3J inter-cooled turbocharged engine delivering 118kW at 2000rpm. This engine configuration provides stable power output, fuel efficiency, and dependable performance for heavy-duty operations.
The hydraulic system includes:
Doosan T5V112 variable plunger pump
PARKER AV280 control valve
Eaton swing motor
DOOSAN TM40VC travel motors
This combination ensures smooth hydraulic response, precise machine control, and reliable operation under continuous heavy workloads.
The hydraulic working pressure of 32Mpa supports powerful digging force and stable attachment performance, especially during dredging and excavation in dense sediment conditions.
The HK300SDA is suitable for a wide range of specialized engineering applications, including:
River dredging projects
Wetland development
Flood prevention infrastructure
Coastal engineering
Marshland excavation
Environmental restoration
Oil and gas pipeline projects
Lake maintenance operations
Water conservancy construction
Its low ground pressure allows operation in environmentally sensitive areas while minimizing terrain damage.
HEKING manufactures swamp excavators for global infrastructure and environmental engineering contractors. The HK300SDA is designed to meet the procurement requirements of overseas dealers, project contractors, rental companies, and government engineering organizations.
The machine supports stable export logistics and professional manufacturing standards. Production is completed within 45 days after receipt of the down payment.
Payment terms:
30% down payment by T/T
70% balance before delivery
HEKING also provides technical support, optional configurations, and customized solutions based on project requirements.
Long reach design for deep dredging operations
Four travel motors for superior swamp mobility
Reinforced pontoon structure for enhanced durability
Low ground pressure for soft terrain stability
Large buoyancy system for amphibious performance
Reliable Mitsubishi turbocharged engine
High-efficiency hydraulic system configuration
Optional deep-water pontoon and spud solutions
Suitable for large international infrastructure projects
| Item | Specification |
| Model | HK300SDA |
| Operating Weight | 36000kg |
| Bucket Capacity | 0.5m³ |
| Boom Length | 8600mm |
| Arm Length | 6260mm |
| Chain Strands Per Side | 3 |
| Item | Specification |
| Engine Model | Mitsubishi 4M50-TLC3J |
| Engine Type | Inter-cooled Turbo |
| Rated Power | 118kW / 2000rpm |
| Maximum Torque | 620N·m / 1500rpm |
| Number of Cylinders | 4 |
| Displacement | 4.899L |
| Item | Specification |
| Pump Type | Variable Plunger Pump |
| Pump Model | Doosan T5V112 |
| Max Displacement | 2 × 112cm³/r |
| Max Flow | 20L/min |
| Working Pressure | 32Mpa |
| Valve Model | PARKER AV280 |
| Swing Motor | Eaton 11020268501 |
| Travel Motor | DOOSAN TM40VC |
| Travel Motor Quantity | 4 |
| Item | Specification |
| Slew Speed | 11rpm |
| Min Slew Radius | 3554mm |
| Travel Speed High/Low | 3.3 / 2.17km/h |
| Gradeability | 0.7 |
| Tractive Effort | 382.4kN |
| Bucket Digging Force | 122.85kN |
| Arm Digging Force | 97.64kN |
| Ground Pressure | 0.14kg/cm² |
| Item | Specification |
| Fuel Tank Capacity | 376L |
| Hydraulic Tank Capacity | 219L |
| Item | Specification |
| Pontoon Length | 9632mm |
| Pontoon Width | 1620mm |
| Pontoon Height | 2050mm |
| Platform Ground Clearance | 1936mm |
| Overall Length | 14330mm |
| Overall Height | 3759mm |
| Overall Width Min/Max | 4719 / 5519mm |
| Track Gauge | 3725mm |
| Rear Swing Radius | 2800mm |
| Ground Clearance | 1126mm |
| Width of Upper Structure | 2622mm |
| Ground Length | 5300mm |
| Item | Specification |
| Max Digging Reach | 15426mm |
| Max Reach on Ground | 15203mm |
| Max Digging Depth | 10858mm |
| Max Vertical Digging Depth | 10420mm |
| Max Digging Height | 14101mm |
| Max Dumping Height | 11889mm |
| Min Front Slewing Radius | 4884mm |
A: The HK300SDA is suitable for river dredging, wetland construction, flood control, coastal engineering, environmental restoration, and marsh excavation projects.
A: The maximum digging reach is 15.4 meters, making it suitable for long-distance excavation and dredging operations.
A: Yes. Optional additional pontoons and spuds are available for enhanced stability during deep-water operations.
A: The excavator uses a Mitsubishi 4M50-TLC3J turbocharged diesel engine with stable power output and fuel efficiency.
A: The HK300SDA is equipped with four DOOSAN TM40VC travel motors for stronger traction and maneuverability.
A: Production is completed within 45 days after receiving the down payment.
A: Payment terms are 30% down payment by T/T and 70% balance before delivery.
A: Yes. The low ground pressure and large buoyancy pontoon structure are specifically designed for swamp and soft terrain operations.
A: Yes. HEKING supports optional pontoons, spuds, and customized solutions according to project requirements.
A: The machine is widely used in Europe, the Middle East, Southeast Asia, Africa, and other regions with wetland and dredging projects.
