| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 40 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 30,000 kg heavy-duty amphibious capacity | Maximum Digging Reach: | 10.18 m extended excavation range |
|---|---|---|---|
| Bucket Capacity: | 0.8 m³ standard digging bucket | Engine Model: | Mitsubishi 4M50-TLC3J turbocharged diesel |
| Engine Power: | 118 kW at 2000 rpm | Hydraulic Pump: | Doosan T5V112 variable plunger pump |
| Working Pressure: | 32 MPa hydraulic operating pressure | Pontoon Width: | 1800 mm heavy flotation structure |
| Travel Configuration: | Dual DOOSAN TM60VC travel motors | Deep Water Option: | Additional pontoons and spud available |

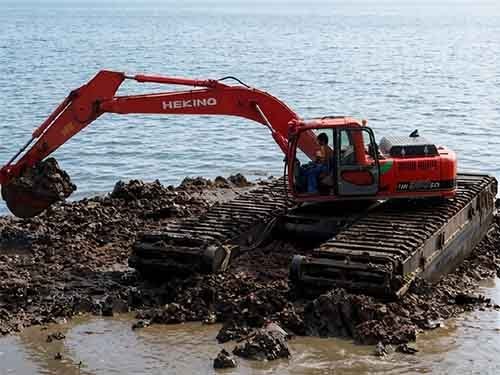

The HK300SD Wetland Excavator is a professional amphibious excavator developed for demanding projects in wetlands, swamps, marshes, shallow water environments, riverbanks, and coastal areas. Designed specifically for contractors working in difficult terrain, the machine combines strong excavation performance with excellent flotation and stability.
As a specialized Wetland Construction Excavator, the HK300SD provides reliable operation where conventional crawler excavators face mobility limitations. Its large pontoon undercarriage distributes machine weight effectively, reducing ground pressure while maintaining productivity in soft ground conditions.
With a 30-ton operating weight, 10.18-meter digging reach, and powerful hydraulic system, the HK300SD is widely used in river dredging, flood control construction, wetland restoration, oil and gas pipeline projects, and coastal engineering works throughout Europe, the Middle East, Southeast Asia, and Africa.
The machine is engineered to improve productivity while minimizing site access challenges, making it an ideal solution for infrastructure contractors, environmental engineering companies, dredging specialists, and government agencies.
Wetland projects require equipment capable of operating safely on unstable surfaces. The HK300SD Marshland Excavator features a specially designed pontoon undercarriage that delivers exceptional flotation and stability.
Its wide flotation pontoons allow the excavator to travel efficiently across mud, marshland, peat, saturated soil, and shallow water. The low ground pressure of approximately 0.14 kg/cm² helps protect sensitive environments while reducing the risk of machine sinking.
Typical applications include:
River dredging projects
Wetland construction
Marshland reclamation
Flood prevention infrastructure
Canal maintenance
Coastal protection works
Oil and gas pipeline installation
Environmental restoration projects
Waterway maintenance operations
The machine's amphibious capability allows contractors to reach difficult work areas without the need for costly temporary access roads or additional support equipment.
The HK300SD is equipped with a Mitsubishi 4M50-TLC3J turbocharged diesel engine delivering 118 kW of power and 620 Nm of torque. This proven powertrain ensures dependable performance under continuous heavy-duty operation.
The hydraulic system incorporates a Doosan T5V112 variable plunger pump and PARKER AV280 control valve, providing responsive and efficient hydraulic control.
Benefits include:
Smooth excavation performance
High digging efficiency
Stable hydraulic output
Reduced fuel consumption
Reliable operation in harsh environments
With a maximum bucket digging force of 122.85 kN and arm digging force of 97.64 kN, the excavator can handle demanding dredging, excavation, and material handling applications.
The pontoon undercarriage is one of the key advantages of the HK300SD.
Features include:
Reinforced flotation pontoons
Heavy-duty track system
Three chain strands per side
Stable wide-track configuration
Excellent buoyancy performance
Enhanced durability in wet environments
For customers working in deeper water conditions, additional pontoons and spud systems can be installed to further expand operating capability.
This modular design provides greater flexibility for different project requirements and site conditions.
River dredging remains one of the primary applications for the HK300SD Wetland Excavator. The combination of strong digging performance and amphibious mobility enables operators to remove sediment, improve water flow, and maintain navigation channels efficiently.
In flood control projects, the excavator is used for:
Drainage channel excavation
River widening
Embankment reinforcement
Sediment removal
Water management infrastructure
The machine is also suitable for coastal engineering projects where access to soft shorelines and tidal areas is required.
Its versatility allows contractors to maximize equipment utilization across multiple project types throughout the year.
The HK300SD is manufactured under strict quality management standards and undergoes comprehensive testing before shipment.
The manufacturer maintains internationally recognized certifications, including:
ISO9001 Quality Management System
ISO14001 Environmental Management System
OHSAS18001 Occupational Health & Safety Management System
CE Certification for Wetland Hydraulic Excavators
Production time is approximately 40 days after receipt of the down payment.
Payment Terms:
30% T/T deposit before production
70% balance before delivery
This streamlined procurement process supports distributors, contractors, and project owners worldwide.
Designed specifically for wetland and marshland operations
Excellent flotation performance in soft ground conditions
Powerful 118 kW Mitsubishi engine
High-capacity Doosan hydraulic system
Large 0.8 m³ bucket capacity
Low ground pressure for environmental protection
Suitable for river dredging and flood control projects
Optional deep-water pontoon and spud system
Reliable performance for international contractors
| Item | Specification |
| Operating Weight | 30,000 kg |
| Bucket Capacity | 0.8 m³ |
| Boom Length | 5680 mm |
| Arm Length | 2912 mm |
| Chain Strands Per Side | 3 |
| Max Digging Reach | 10186 mm |
| Max Digging Depth | 3201 mm |
| Max Digging Height | 7027 mm |
| Max Dumping Height | 6928 mm |
| Item | Specification |
| Engine Model | Mitsubishi 4M50-TLC3J |
| Engine Type | Inter-cooled Turbo |
| Power Output | 118 kW / 2000 rpm |
| Max Torque | 620 Nm / 1500 rpm |
| Cylinders | 4 |
| Displacement | 4.899 L |
| Item | Specification |
| Pump Model | Doosan T5V112 |
| Pump Type | Variable Plunger |
| Max Displacement | 2 × 112 cm³/r |
| Max Flow | 20 L/min |
| Working Pressure | 32 MPa |
| Valve | PARKER AV280 |
| Item | Specification |
| Travel Motor | DOOSAN TM60VC |
| Travel Motor Quantity | 2 |
| Slew Speed | 11 rpm |
| Travel Speed | 3.3 / 2.17 km/h |
| Gradeability | 70% |
| Tractive Effort | 382.4 kN |
| Ground Pressure | 0.14 kg/cm² |
| Item | Specification |
| Fuel Tank | 376 L |
| Hydraulic Tank | 219 L |
| Item | Specification |
| Pontoon Length | 8285 mm |
| Pontoon Width | 1800 mm |
| Pontoon Height | 1700 mm |
| Overall Width | 5742 mm |
| Track Gauge | 3950 mm |
| Item | Specification |
| Overall Length | 10747 mm |
| Overall Height | 3759 mm |
| Ground Clearance | 1126 mm |
| Rear Swing Radius | 2800 mm |
| Upper Structure Width | 2622 mm |
A: It is designed for river dredging, wetland construction, flood control, coastal engineering, and marshland development projects.
A: Yes. Its pontoon undercarriage provides flotation and stability in soft ground and shallow water conditions.
A: Yes. The HK300SD is widely used for pipeline installation and maintenance in wetlands and soft terrain.
A: The machine is equipped with a Mitsubishi 4M50-TLC3J turbocharged diesel engine.
A: The excavator offers a maximum digging reach of 10.18 meters.
A: Yes. Additional pontoons and spud systems are available for deep-water applications.
A: Production is typically completed within 40 days after receiving the deposit.
A: 30% T/T deposit before production and 70% balance before delivery.
A: Yes. It is manufactured according to international quality standards and supported by CE certification.
A: Dredging contractors, environmental engineering firms, civil construction companies, coastal engineering contractors, and government infrastructure agencies.
