| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, T/T, WU |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Delivery Date: | within 50 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 40,000 kg heavy-duty wetland operating capacity | Maximum Digging Reach: | Up to 18.7 m extended working range |
|---|---|---|---|
| Bucket Capacity: | 0.5-1.3 m³ excavation productivity range | Engine Configuration: | Cummins QSB6.7 / Cummins C8.3 high-performance diesel engine |
| Hydraulic Pump System: | Kawasaki T5V140DT variable plunger pump | Travel Drive Arrangement: | Four DOOSAN TM40VC travel motors |
| Pontoon Width:: | 1,800 mm flotation pontoon structure | Ground Pressure: | Low 0.14 kg/cm² for soft terrain operation |
| Fuel Capacity: | 560 L large-capacity fuel tank | Optional Equipment: | Additional pontoon and spud for deep-water projects |

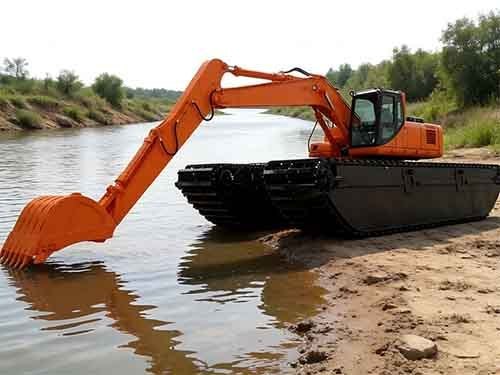

The HK400SD Wetland Excavator is a professional-grade machine developed specifically for projects where conventional excavators cannot operate effectively. Designed for marshes, wetlands, swamps, tidal zones, shallow lakes, riverbanks, estuaries, and coastal engineering sites, this heavy-duty excavator combines powerful digging performance with outstanding flotation capability.
As a specialized Wetland Construction Excavator, the HK400SD allows contractors to perform excavation, dredging, environmental restoration, flood control, shoreline reinforcement, and infrastructure development in areas characterized by unstable soil conditions and water-saturated terrain.
The machine's advanced pontoon undercarriage distributes weight efficiently, creating an ultra-low ground pressure of only 0.14 kg/cm². This allows the excavator to travel safely across soft mud, marshland, peat soil, and swamp environments while minimizing environmental disturbance.
The HK400SD is powered by either the Cummins C8.3 or Isuzu 6HK1 turbocharged diesel engine, delivering up to 183.9 kW of power and 949 N·m of torque. This powerful drivetrain ensures reliable operation during continuous excavation and dredging tasks.
The hydraulic system features the Kawasaki T5V140DT variable plunger pump with a displacement of 2×140 cm³/r, providing smooth and responsive control under demanding conditions. Combined with high-performance hydraulic valves and motors, the system delivers exceptional efficiency for heavy digging, loading, dredging, and material handling applications.
With a bucket digging force of 135 kN and arm digging force of 123.8 kN, the HK400SD can tackle compacted soil, silt deposits, river sediments, and wet clay commonly encountered in dredging and wetland construction projects.
One of the key advantages of the HK400SD Marshland Excavator is its heavy-duty pontoon structure. The pontoons measure 11,400 mm in length and 1,800 mm in width, providing exceptional buoyancy and stability.
The wide undercarriage enables safe operation in challenging terrain where standard crawler excavators risk sinking or becoming immobilized. Four DOOSAN travel motors provide strong traction and precise maneuverability even when working in waterlogged environments.
For contractors involved in deep-water dredging, additional pontoons and spud systems can be installed to enhance stability and operational safety.
The HK400SD Wetland Construction Excavator is widely used in:
River dredging projects
Canal maintenance
Flood prevention works
Coastal engineering
Wetland restoration
Environmental remediation
Marshland development
Reservoir maintenance
Shoreline protection
Port and harbor construction
Its ability to operate in waterlogged and unstable environments significantly reduces the need for temporary access roads, work platforms, or costly ground stabilization measures.
The HK400SD is manufactured under strict quality management procedures and supported by professional production facilities. The machine is designed to meet the operational requirements of contractors, government agencies, dredging companies, and environmental engineering firms throughout Europe, the Middle East, Southeast Asia, Africa, and South America.
Production is completed within approximately 50 days after receipt of the down payment.
Payment terms:
30% T/T deposit
70% balance before shipment
Comprehensive export support, spare parts availability, and technical assistance ensure reliable long-term operation for international customers.
Heavy-duty 40-ton operating capacity
Excellent flotation on soft ground and wetlands
Powerful Cummins engine performance
Kawasaki hydraulic system for reliable operation
Four travel motors for superior mobility
Low ground pressure minimizes terrain damage
Suitable for river and coastal dredging
Optional deep-water pontoon configuration
Designed for continuous industrial operation
| Item | Specification |
| Model | HK400SD |
| Operating Weight | 40,000 kg |
| Bucket Capacity | 1.3 m³ |
| Boom Length | 6,733 mm |
| Arm Length | 4,520 mm |
| Chains Per Side | 3 |
| Item | Specification |
| Engine Model | Cummins C8.3 / Isuzu 6HK1 |
| Engine Type | Inter-cooled Turbo |
| Rated Power | 183.9 kW / 2200 rpm |
| Maximum Torque | 949 N·m / 1500 rpm |
| Cylinders | 6 |
| Displacement | 7.79 L |
| Item | Specification |
| Pump Type | Variable Plunger Pump |
| Pump Model | Kawasaki T5V140DT |
| Max Displacement | 2×140 cm³/r |
| Working Pressure | 32 MPa |
| Swing Motor | Fixed Plunger |
| Travel Motor | Variable Plunger |
| Item | Specification |
| Travel Speed (High/Low) | 2.1 / 1.2 km/h |
| Gradeability | 70% |
| Tractive Effort | 4×116 kN |
| Slew Speed | 9 rpm |
| Ground Pressure | 0.14 kg/cm² |
| Item | Specification |
| Fuel Tank | 560 L |
| Hydraulic Tank | 250 L |
| Item | Specification |
| Pontoon Length | 11,400 mm |
| Pontoon Width | 1,800 mm |
| Pontoon Height | 1,913 mm |
| Overall Width | 5,500 mm |
| Overall Height | 4,144 mm |
| Track Gauge | 3,523 mm |
| Platform Clearance | 2,090 mm |
| Ground Clearance | 1,228 mm |
| Item | Specification |
| Maximum Digging Reach | 12,049 mm |
| Reach on Ground | 11,687 mm |
| Maximum Digging Depth | 7,396 mm |
| Vertical Digging Depth | 6,733 mm |
| Maximum Digging Height | 12,127 mm |
| Maximum Dumping Height | 9,018 mm |
| Front Swing Radius | 3,848 mm |
A: The HK400SD is ideal for wetland construction, river dredging, marshland excavation, coastal engineering, flood control, and environmental restoration projects.
A: Yes. Optional additional pontoons and spud systems can be installed for improved stability during deep-water operations.
A: The machine is available with Cummins C8.3 or Isuzu 6HK1 turbocharged diesel engines delivering up to 183.9 kW.
A: Production is typically completed within 50 days after receipt of the down payment.
A: Payment terms are 30% T/T deposit and 70% balance before shipment.
A: The pontoon undercarriage provides flotation and ultra-low ground pressure, enabling operation in wetlands and marshes where conventional excavators cannot work safely.
A: Yes. Its powerful hydraulic system and stable floating undercarriage make it highly effective for dredging applications.
A: Yes. Export spare parts support and after-sales technical assistance are available for overseas customers.
A: Europe, the Middle East, Southeast Asia, Africa, and South America are key markets for wetland excavation and dredging equipment.
A: Yes. Various buckets, dredging attachments, pontoons, and auxiliary equipment can be configured according to project requirements.
