| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 40 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 30,000kg heavy-duty wetland excavator platform | Bucket Capacity: | 0.8m³ standard dredging bucket configuration |
|---|---|---|---|
| Maximum Digging Reach: | 10,186mm extended working range | Engine System: | Mitsubishi 4M50-TLC3J turbocharged diesel engine |
| Hydraulic Pump: | Doosan T5V112 variable plunger hydraulic pump | Working Pressure: | 32MPa hydraulic operating pressure |
| Pontoon Width: | 1,800mm reinforced amphibious pontoons | Travel Motor Configuration: | Dual DOOSAN TM60VC travel motors |
| Ground Pressure: | 0.14kg/cm² low ground pressure performance | Optional Configuration: | Additional pontoon and spud for deep water work |

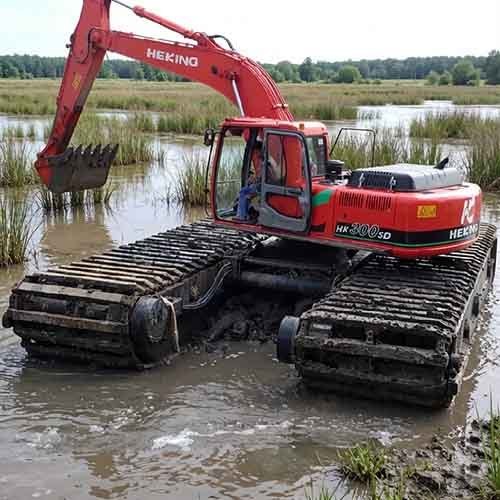

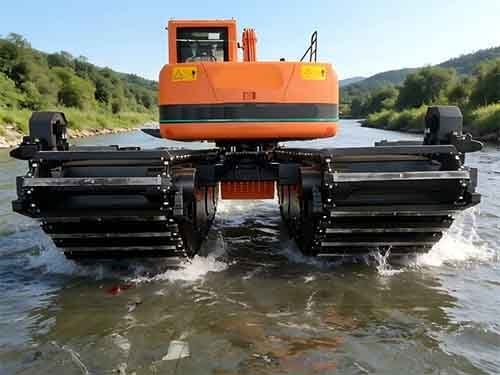

The HK300SD wetland excavator is a professional amphibious excavator engineered for challenging terrain applications including river dredging, swamp operations, wetland construction, flood prevention projects, and coastal engineering. Designed for contractors and infrastructure companies operating in soft soil and shallow water environments, this machine combines strong flotation performance with reliable hydraulic power.
This 30-ton wetland excavator is equipped with reinforced pontoons and a low ground pressure structure, allowing stable movement across muddy terrain, marshland, and waterlogged construction sites. The machine is suitable for projects where standard crawler excavators cannot operate efficiently.
With a maximum digging reach exceeding 10 meters and a durable hydraulic system, the HK300SD can handle dredging, sediment removal, canal cleaning, embankment reinforcement, and environmental restoration work. The combination of powerful digging force and excellent flotation capacity makes it highly suitable for large-scale infrastructure projects in Europe, the Middle East, Southeast Asia, and coastal regions worldwide.
River Dredging Operations
The HK300SD wetland excavator is widely used for river dredging and waterway maintenance projects. Its amphibious undercarriage allows operators to work directly in shallow water and muddy riverbanks without additional floating platforms. Contractors can improve operational efficiency while reducing transportation and setup costs.
Wetland Construction Projects
For wetland development and ecological restoration, the machine provides low ground pressure and stable movement across sensitive terrain. The large buoyancy pontoons reduce environmental impact while maintaining strong operational capability.
Flood Control Engineering
Flood control authorities and municipal contractors use this wetland excavator for drainage improvement, sediment clearing, and emergency waterway maintenance. The machine can access flooded areas where traditional excavators may become trapped.
Oil & Gas Pipeline Projects
Pipeline construction in swamp regions requires specialized equipment capable of operating safely on unstable ground. The HK300SD provides reliable mobility and digging performance for trenching and site preparation in difficult terrain.
Coastal Engineering and Shoreline Maintenance

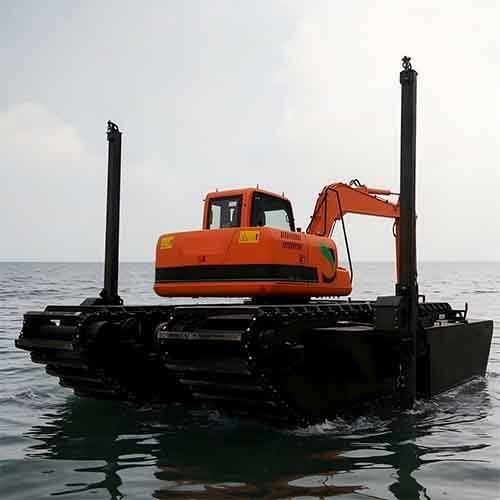

The reinforced amphibious structure makes the HK300SD suitable for coastal engineering work, shoreline reinforcement, and marine construction support operations. Optional deep-water pontoons and spud systems are available for demanding marine applications.
High buoyancy pontoon structure for swamp and shallow water work
Low ground pressure reduces sinking risk in soft terrain
Reliable Mitsubishi turbocharged engine for continuous operation
Strong hydraulic digging force for dredging efficiency
Reinforced pontoon design improves machine stability
Suitable for river, marsh, coastal, and flood control projects
Optional deep-water spud system available
Easy transportation and maintenance structure
Designed for long operating hours in harsh environments
The HK300SD wetland excavator adopts a Mitsubishi 4M50-TLC3J turbocharged diesel engine delivering stable output for demanding dredging applications. Combined with the Doosan T5V112 hydraulic pump and PARKER AV280 valve system, the machine provides smooth hydraulic response and reliable multi-function control.
The hydraulic system operates at a maximum working pressure of 32MPa, ensuring powerful excavation capability even in dense sediment and heavy clay conditions. The dual travel motor system enhances traction and maneuverability in wetlands and swamp areas.
The excavator also features strong bucket breakout force and arm digging force, supporting efficient excavation in river maintenance, drainage construction, and environmental protection projects.
The HK300SD features reinforced amphibious pontoons specifically designed for wetland and dredging environments. The pontoon dimensions provide excellent flotation and operational balance during excavation.
The machine's wide track gauge and stable undercarriage design improve operator confidence when working in unstable terrain conditions. Its low ground pressure minimizes soil disturbance and supports operation in environmentally sensitive areas.
Optional configurations such as additional pontoons and spud systems can be customized according to project depth and operational requirements.
HEKING is a professional manufacturer specializing in amphibious excavators and wetland construction equipment. The company operates advanced production facilities and maintains strict quality control standards throughout manufacturing.
The HK300SD wetland excavator is supported by multiple certifications, including CE certification and ISO quality management systems. The production process emphasizes durability, hydraulic reliability, and long-term operational stability for international buyers.
The factory provides customized solutions for different project environments and supports overseas distributors, contractors, and equipment rental companies.
The HK300SD wetland excavator is available for export to Europe, the Middle East, Africa, Southeast Asia, and other international markets. Flexible procurement support is available for distributors, contractors, and project buyers.
Payment terms:
T/T 30% down payment
70% balance before delivery
Production time:
Within 40 days after receipt of down payment
The company can provide technical support, product documentation, and optional configurations according to project requirements.
| Item | Specification |
| Model | HK300SD |
| Machine Type | Wetland Excavator |
| Operating Weight | 30,000kg |
| Standard Bucket Capacity | 0.8m³ |
| Boom Length | 5680mm |
| Arm Length | 2912mm |
| Chain Strands per Side | 3 |
| Item | Specification |
| Engine Model | Mitsubishi 4M50-TLC3J |
| Engine Type | Inter-cooled Turbo |
| Rated Power | 118kW / 2000rpm |
| Maximum Torque | 620N·m / 1500rpm |
| Number of Cylinders | 4 |
| Displacement | 4.899L |
| Item | Specification |
| Hydraulic Pump Type | Variable Plunger Pump |
| Max Pump Displacement | 2 × 112cm³/r |
| Maximum Flow | 20L/min |
| Working Pressure | 32MPa |
| Slew Motor Type | Fixed Plunger |
| Travel Motor Type | Variable Plunger |
| Item | Specification |
| Slew Speed | 11rpm |
| Minimum Slew Radius | 3554mm |
| Travel Speed High/Low | 3.3 / 2.17km/h |
| Gradeability | 0.7 |
| Tractive Effort | 382.4kN |
| Bucket Digging Force | 122.85kN |
| Arm Digging Force | 97.64kN |
| Ground Pressure | 0.14kg/cm² |
| Item | Specification |
| Fuel Tank Capacity | 376L |
| Hydraulic Tank Capacity | 219L |
| Item | Specification |
| Pontoon Length | 8285mm |
| Ground Clearance of Platform | 1936mm |
| Overall Height | 3759mm |
| Boom Transport Height | 3379mm |
| Overall Length | 10747mm |
| Rear Swing Radius | 2800mm |
| Track Gauge | 3950mm |
| Overall Width | 5742mm |
| Pontoon Width | 1800mm |
| Minimum Ground Clearance | 1126mm |
| Pontoon Height | 1700mm |
| Upper Structure Width | 2622mm |
| Ground Length | 5088mm |
| Item | Specification |
| Maximum Digging Reach | 10186mm |
| Maximum Reach on Ground | 10163mm |
| Maximum Digging Depth | 3201mm |
| Maximum Vertical Digging Depth | 10163mm |
| Maximum Digging Height | 7027mm |
| Maximum Dumping Height | 6928mm |
| Minimum Front Slewing Radius | 6550mm |
| Item | Specification |
| Engine | Mitsubishi 4M50-TLC3J |
| Pump | Doosan T5V112 |
| Valve | PARKER AV280 |
| Swing Motor | Eaton 11020268501 |
| Travel Motor | DOOSAN TM60VC |
| Travel Motor Quantity | 2 |
Q1: What is the main application of the HK300SD wetland excavator?
A: The HK300SD is mainly used for river dredging, wetland construction, flood control projects, coastal engineering, and swamp excavation operations.
Q2: Can this wetland excavator operate in shallow water?
A: Yes. The amphibious pontoon undercarriage allows stable operation in shallow water, muddy terrain, and marshland environments.
Q3: What engine is used in the HK300SD?
A: The machine is equipped with a Mitsubishi 4M50-TLC3J turbocharged diesel engine.
Q4: Is deep-water configuration available?
A: Yes. Additional pontoons and spud systems are available as optional configurations for deeper water applications.
Q5: What is the production lead time?
A: Production is generally completed within 40 days after receiving the down payment.
Q6: What industries commonly purchase this excavator?
A: Government contractors, dredging companies, flood control authorities, oil & gas contractors, and wetland engineering companies commonly purchase this equipment.
Q7: Does the machine support international export?
A: Yes. The HK300SD wetland excavator is supplied to overseas markets including Europe, the Middle East, Africa, and Southeast Asia.
Q8: What makes this excavator suitable for swamp operations?
A: Its low ground pressure, high buoyancy pontoons, and reinforced amphibious structure allow reliable movement on soft ground and wetlands.
