| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, L/C, T/T, WU |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 50 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 40,000 kg heavy-duty working capacity | Application Type: | Swamp, marsh, wetland and dredging operations |
|---|---|---|---|
| Maximum Digging Reach: | Up to 18.7 m extended working range | Bucket Capacity: | 0.5-1.3 m³ depending on configuration |
| Engine Configuration: | Cummins QSB6.7 / Cummins C8.3 / Isuzu 6HK1 | Hydraulic Pump System: | Kawasaki T5V140DT variable plunger pump |
| Travel Drive System: | Four DOOSAN TM40VC travel motors | Pontoon Structure: | Heavy-duty floating pontoon undercarriage |
| Ground Pressure: | Low 0.14 kg/cm² for soft terrain mobility | Optional Equipment: | Additional pontoon and spud for deep water work |

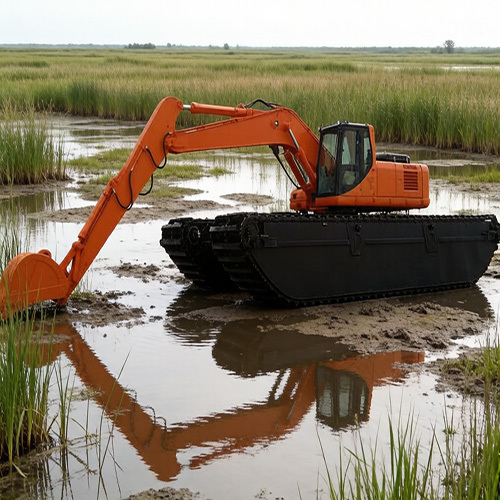

The HK400SD Swamp Excavator is a professional heavy-duty machine developed specifically for contractors working in wetlands, marshlands, riverbanks, floodplains, lakes, reservoirs, coastal areas and other soft ground environments where conventional excavators cannot operate efficiently.
Designed with a large flotation pontoon system and low ground pressure undercarriage, this Swamp Buggy Excavator can travel safely across unstable surfaces while maintaining excellent operational stability. The machine is widely used for river dredging, environmental restoration, flood prevention projects, coastal engineering, canal maintenance and wetland development.
For contractors seeking a reliable Marsh Excavator capable of handling demanding working conditions, the HK400SD provides the power, reach and durability required for long-term operation.
The HK400SD is equipped with a powerful Cummins or Isuzu engine delivering up to 183.9 kW of power. Combined with the Kawasaki T5V140DT hydraulic pump system, the machine provides strong hydraulic output and efficient fuel utilization.
The advanced hydraulic system ensures smooth operation during digging, dredging, lifting and material handling tasks. High bucket breakout force and arm digging force enable the excavator to work efficiently in dense mud, clay, sediment and underwater materials.
With a maximum bucket digging force of 135 kN and arm digging force of 123.8 kN, operators can maintain productivity even in challenging marsh and dredging environments.
One of the major advantages of the HK400SD Swamp Excavator is its extended working range. The machine provides a maximum digging reach of up to 18.7 meters, allowing operators to access difficult locations without frequent repositioning.
This feature is particularly valuable for:
River dredging projects
Canal maintenance
Flood control operations
Lake restoration
Coastal engineering
Sediment removal
Environmental rehabilitation
The long reach design improves productivity and reduces operational downtime, helping contractors complete projects more efficiently.
The specially designed amphibious pontoon undercarriage provides exceptional flotation and stability. The pontoon system distributes machine weight over a larger surface area, reducing ground pressure to only 0.14 kg/cm².
This allows the HK400SD Marsh Excavator to operate safely on:
Swamps
Marshes
Peatlands
Mudflats
Wetlands
Soft riverbanks
Shallow water environments
The machine uses four DOOSAN travel motors to provide strong traction and mobility even in difficult terrain conditions.
For projects requiring operation in deeper water environments, the HK400SD can be equipped with optional side pontoons and spud systems.The optional deep-water package enables contractors to perform:
Deep-water dredging
Reservoir maintenance
Coastal protection projects
Harbor maintenance
Shoreline stabilization
Waterway construction
This flexibility makes the HK400SD a practical investment for contractors serving multiple industries.
The HK400SD is manufactured under strict quality management standards and is designed to meet the requirements of international buyers across Europe, the Middle East, Asia, Africa and South America.
With robust structural components, internationally recognized hydraulic components and dependable engine options, the machine offers long service life and reduced maintenance costs.
Production is completed within approximately 50 days after receipt of the down payment.
Payment Terms:
30% T/T deposit before production
70% balance before shipment
The HK400SD is an ideal choice for contractors, equipment rental companies, dredging specialists and government infrastructure projects requiring a dependable Swamp Buggy Excavator for long-term operation in difficult environments.
Heavy-duty 40-ton operating weight
Long reach up to 18.7 meters
Low ground pressure for soft terrain
Powerful Kawasaki hydraulic system
Four-motor travel drive configuration
Excellent flotation and stability
Suitable for dredging and wetland work
Optional deep-water pontoon package
Reliable global-brand hydraulic components
| Item | Specification |
| Model | HK400SD |
| Operating Weight | 40,000 kg |
| Bucket Capacity | 1.3 m³ |
| Boom Length | 6,733 mm |
| Arm Length | 4,520 mm |
| Chains | 3 |
| Item | Specification |
| Engine Model | Cummins C8.3 / Isuzu 6HK1 |
| Engine Type | Inter-cooled Turbo |
| Power | 183.9 kW / 2200 rpm |
| Max Torque | 949 N·m / 1500 rpm |
| Cylinders | 6 |
| Displacement | 7.79 L |
| Item | Specification |
| Pump Type | Variable Plunger Pump |
| Pump Model | Kawasaki T5V140DT |
| Max Displacement | 2 × 140 cm³/r |
| Working Pressure | 32 MPa |
| Valve | Kawasaki KMX15RA/B45030A |
| Swing Motor | Korea SUNJIN DS180021-01 |
| Travel Motor | DOOSAN TM40VC |
| Item | Specification |
| Slew Speed | 9 rpm |
| Travel Speed (High/Low) | 2.1 / 1.2 km/h |
| Gradeability | 70% |
| Tractive Effort | 4 × 116 kN |
| Bucket Digging Force | 135 kN |
| Arm Digging Force | 123.8 kN |
| Ground Pressure | 0.14 kg/cm² |
| Item | Specification |
| Fuel Tank | 560 L |
| Hydraulic Tank | 250 L |
| Item | Specification |
| Pontoon Length | 11,400 mm |
| Pontoon Width | 1,800 mm |
| Pontoon Height | 1,913 mm |
| Overall Width | 5,500 mm |
| Overall Height | 4,144 mm |
| Ground Clearance | 1,228 mm |
| Platform Clearance | 2,090 mm |
| Rear Swing Radius | 3,140 mm |
| Ground Length | 7,642 mm |
| Item | Specification |
| Max Digging Reach | 12,049 mm |
| Reach on Ground | 11,687 mm |
| Max Digging Depth | 7,396 mm |
| Vertical Digging Depth | 6,733 mm |
| Max Digging Height | 12,127 mm |
| Max Dumping Height | 9,018 mm |
| Min Front Swing Radius | 3,848 mm |
A: The HK400SD is designed for river dredging, wetland construction, marsh maintenance, flood control, environmental restoration, coastal engineering and waterway development projects.
A: Yes. Optional side pontoons and spud systems are available for enhanced stability during deep-water operations.
A: The amphibious pontoon undercarriage provides flotation and low ground pressure, allowing operation on soft terrain where conventional excavators may become stuck.
A: The machine can be configured with Cummins C8.3, Cummins QSB6.7 or Isuzu 6HK1 engines depending on customer requirements.
A: Yes. The HK400SD is widely suitable for infrastructure, dredging and environmental projects throughout Europe and the Middle East.
A: Production is normally completed within 50 days after receipt of the deposit.
A: Payment terms are 30% T/T deposit before production and 70% balance before delivery.
A: Yes. Buckets, dredging tools, pontoons and project-specific accessories can be customized.
A: Export packing, loading plans and shipping assistance can be arranged according to destination requirements.
A: Yes. Technical consultation, spare parts support and operation guidance are available for international customers.
