| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | Paypal, L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 45 days after... |
| Brand Name: | HEKING |
| Operating Weight: | 36,000 kg heavy-duty amphibious platform for demanding projects. | Maximum Digging Reach: | Up to 15.4 m for extended dredging and excavation coverage. |
|---|---|---|---|
| Bucket Capacity: | Standard 0.5 m³ bucket optimized for precision dredging work. | Travel System: | Four independent travel motors for superior traction and maneuverability. |
| Ground Pressure: | Only 0.14 kg/cm² for operation on extremely soft ground. | Pontoon Structure: | Large buoyancy pontoons manufactured from Q345B steel. |
| Engine Configuration: | Mitsubishi 4M50-TLC3J turbocharged diesel engine, 118 kW. | Hydraulic System: | Doosan T5V112 variable plunger pump with 32 MPa working pressure. |
| Deep Water Option: | Additional pontoon and spud available for deeper water applications. | Production Lead Time: | Within 45 days after receipt of down payment. |

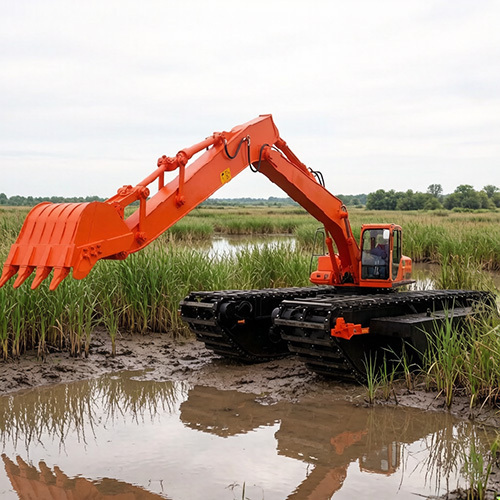

The HK300SDA Swamp Buggy Excavator is engineered specifically for contractors working in wetlands, marshes, swamps, riverbanks, coastal zones, ponds, lagoons, and other soft-ground environments where conventional excavators cannot operate safely.
Built on a reinforced amphibious undercarriage, the machine combines powerful excavation performance with exceptional flotation capability. Its large pontoons distribute machine weight over a broad surface area, significantly reducing ground pressure and preventing sinking in unstable terrain.
Designed for professional dredging contractors, environmental restoration companies, civil engineering firms, and government infrastructure projects, the HK300SDA provides reliable productivity in locations that are difficult or impossible to access using standard crawler excavators.
Wetland and marshland construction projects often present severe operational challenges. Soft soil, standing water, unstable riverbanks, and deep mud can cause traditional machines to become immobilized, resulting in costly delays and increased project risks.
The HK300SDA Marsh Excavator solves these challenges through its specialized amphibious design.
Key structural advantages include:
Reinforced pontoon chassis
Large buoyancy system
Four independent travel motors
Heavy-duty track chains
Strengthened 40Cr rollers
Corrosion-resistant steel structure
Wide working platform
Excellent flotation stability
These features allow operators to work confidently across marshes, bogs, wetlands, tidal flats, and shallow water environments.
One of the most important advantages of the HK300SDA is its long-reach excavation capability.
Featuring an 8.6-meter boom and a 6.26-meter arm, the machine achieves a maximum digging reach of 15.4 meters and a digging depth exceeding 10.8 meters.
This extended working range allows contractors to:
Perform river dredging from safe positions
Clean canals and drainage systems
Maintain reservoirs and lakes
Restore wetlands
Remove accumulated sediment
Execute flood control projects
Conduct shoreline stabilization work
The long reach minimizes machine repositioning, improving productivity and reducing project costs.
The HK300SDA utilizes internationally recognized hydraulic components to ensure long-term reliability.
Core hydraulic components include:
Mitsubishi 4M50-TLC3J Engine
Doosan T5V112 Hydraulic Pump
PARKER AV280 Main Valve
Eaton Swing Motor
DOOSAN Travel Motors
The hydraulic system delivers:
Maximum working pressure of 32 MPa
High digging force
Smooth operation
Fast response times
Efficient fuel utilization
Reduced maintenance requirements
This configuration ensures stable performance during continuous dredging and excavation operations.
The amphibious undercarriage is one of the most critical elements of any swamp excavator.
The HK300SDA features:
Q345B structural steel construction
Hull top plate thickness: 6 mm
Side plate thickness: 6 mm
Bottom plate thickness: 8 mm
Three chain strands per side
Four travel motors
Large-volume flotation pontoons
This robust structure provides excellent durability when operating in abrasive mud, wetland vegetation, sand, and shallow water.
For deep-water projects, customers may select optional additional pontoons and spud systems to enhance stability and operational capability.
The HK300SDA Swamp Buggy Excavator is widely used in:
Removal of sediment, mud, and debris from waterways.
Habitat rehabilitation and environmental protection projects.
Construction and maintenance of coastal infrastructure.
Channel expansion and drainage improvement projects.
Infrastructure construction in soft-ground environments.
Safe operation in waterlogged industrial sites.
HEKING is a professional manufacturer specializing in amphibious excavators, swamp excavators, wetland excavators, amphibious undercarriages, and dredging equipment.
Advantages include:
ISO-certified manufacturing systems
CE-certified products
Dedicated amphibious equipment expertise
In-house engineering capabilities
Strong production capacity
Export experience across multiple regions
Professional technical support
Customized solutions available
Stable spare parts supply
Long 15.4 m excavation reach
Low ground pressure design
Large buoyancy pontoon structure
Four-motor travel system
Heavy-duty reinforced undercarriage
International hydraulic components
Suitable for marsh, swamp and wetland work
Optional deep-water pontoons and spud
Fast factory delivery within 45 days
| Item | Specification |
| Model | HK300SDA |
| Operating Weight | 36,000 kg |
| Bucket Capacity | 0.5 m³ |
| Engine | Mitsubishi 4M50-TLC3J |
| Engine Power | 118 kW / 2000 rpm |
| Maximum Torque | 620 N·m / 1500 rpm |
| Fuel Tank | 376 L |
| Hydraulic Tank | 219 L |
| Item | Specification |
| Hydraulic Pump | Doosan T5V112 |
| Pump Type | Variable Plunger |
| Max Displacement | 2 × 112 cm³/r |
| Working Pressure | 32 MPa |
| Main Valve | PARKER AV280 |
| Swing Motor | Eaton 11020268501 |
| Travel Motor | DOOSAN TM40VC |
| Travel Motors Quantity | 4 |
| Item | Specification |
| Max Digging Reach | 15,426 mm |
| Max Ground Reach | 15,203 mm |
| Max Digging Depth | 10,858 mm |
| Vertical Digging Depth | 10,420 mm |
| Max Digging Height | 14,101 mm |
| Max Dumping Height | 11,889 mm |
| Bucket Digging Force | 122.85 kN |
| Arm Digging Force | 97.64 kN |
| Item | Specification |
| Pontoon Length | 9,632 mm |
| Pontoon Width | 1,620 mm |
| Pontoon Height | 2,050 mm |
| Ground Pressure | 0.14 kg/cm² |
| Chain Strands Per Side | 3 |
| Material | Q345B Steel |
| Hull Top Thickness | 6 mm |
| Hull Side Thickness | 6 mm |
| Hull Bottom Thickness | 8 mm |
| Item | Specification |
| Overall Length | 14,330 mm |
| Overall Width (Min/Max) | 4,719 / 5,519 mm |
| Overall Height | 3,759 mm |
| Rear Swing Radius | 2,800 mm |
| Track Gauge | 3,725 mm |
| Ground Clearance | 1,126 mm |
| Item | Specification |
| Payment Term | T/T 30% Deposit, 70% Before Delivery |
| Production Time | Within 45 Days |
| Optional Equipment | Additional Pontoon & Spud |
| Export Support | Available |
| OEM Service | Available |
A: It is designed for wetland construction, river dredging, marshland development, flood control, environmental restoration, and coastal engineering projects.
A: Yes. Additional pontoons and spud systems can be installed for enhanced deep-water stability and operation.
A: The HK300SDA provides a maximum digging reach of 15.4 meters.
A: Its large buoyancy pontoons, low ground pressure, reinforced undercarriage, and four-motor travel system allow operation in soft and waterlogged terrain.
A: Yes. The machine is designed for international markets and can be supplied with relevant export documentation and certifications.
A: The machine utilizes Doosan hydraulic pumps, PARKER valves, Eaton swing motors, and DOOSAN travel motors.
A: Standard production time is within 45 days after receiving the down payment.
A: Yes. Various buckets and project-specific configurations can be provided.
A: Ground pressure is only 0.14 kg/cm², making it suitable for extremely soft ground conditions.
A: Yes. HEKING provides technical consultation, spare parts support, and after-sales assistance for overseas customers.
