| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | Paypal, T/T, WU |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | Within 45 days after... |
| Brand Name: | HEKING |
| Operating Weight Class: | 15,000 kg amphibious platform for medium-duty projects | Bucket Capacity Standard: | 0.2-0.25 m³ for controlled excavation in wetlands |
|---|---|---|---|
| Maximum Digging Reach: | Approx. 9.0 m working range | Maximum Digging Depth: | Up to 5.88 m for riverbed and canal excavation |
| Engine Configuration: | Yanmar 4TNV98T turbo diesel, 54.3 kW output | Hydraulic System Brand: | Toshiba pump and valve system, 26.5 MPa pressure |
| Undercarriage Drive System: | Four independent travel motors for stability | Ground Pressure Rating: | Approx. 0.13 kg/cm² for ultra-soft terrain operation |
| Pontoon Structure Type: | Reinforced steel pontoon with high buoyancy design | Optional Equipment: | Additional pontoon and spud system for deep-water work |
Optimized size for narrow waterways and soft terrain access
Reliable Yanmar engine widely accepted in Europe and Middle East
Low ground pressure minimizes sinking and environmental disturbance
Four-motor travel system improves traction on water and mud
Extendable undercarriage adapts to different site widths
High buoyancy pontoon ensures floating stability during operation
International hydraulic components reduce service risk
Flexible configuration for rental fleets and contractors
Short production cycle supports project-based procurement
| Engine | Yanmar 4TNV98T |
| Pump | Toshiba PVC90RC06 |
| Valve | Toshiba IB18-8021 |
| Swing motor | Toshiba SG025E-136 |
| Travel motor | DOOSAN TM22VC |
| Travel motor no. | 4 |
The HEKING HK150SD amphibious excavator is a 15-ton class machine engineered specifically for operations in wetlands, shallow water, marshland, and other soft-ground environments where conventional excavators cannot operate efficiently. Designed for professional contractors and project owners in Europe and the Middle East, the HK150SD combines compact dimensions with dependable performance, making it ideal for medium-scale environmental and water engineering projects.
This amphibious excavator is built on a reinforced pontoon undercarriage featuring a high-buoyancy steel structure and hydraulically extendable track frame. The extendable undercarriage allows the machine width to be adjusted between approximately 3.5 and 4.55 meters, improving stability during operation while maintaining transport efficiency. With a ground pressure of only around 0.13 kg/cm², the HK150SD can work safely on mud, peat, riverbanks, and reclaimed land without excessive ground disturbance.
Power is supplied by the Yanmar 4TNV98T turbocharged diesel engine, delivering 54.3 kW at 2200 rpm. This engine model is well known for fuel efficiency, durability, and ease of service, making it a preferred choice for export-oriented equipment. The engine is paired with a Toshiba variable plunger hydraulic pump and control valve, ensuring smooth response, precise movement, and consistent digging force under varying load conditions.
The HK150SD provides a maximum digging reach of approximately 9 meters and a maximum digging depth of nearly 5.9 meters, supporting a wide range of applications such as river dredging, canal cleaning, slope trimming, and wetland restoration. A standard bucket capacity of 0.2–0.25 m³ allows controlled excavation while maintaining balance on floating platforms.
Mobility and traction are enhanced by a four-motor travel system, which distributes power evenly across the undercarriage. This configuration improves maneuverability on waterlogged surfaces and increases safety when transitioning between land and water. The strengthened track shoes and chains further improve durability during long-term use in abrasive or submerged conditions.
For projects involving deeper water or stronger currents, the HK150SD can be equipped with additional pontoons and a spud anchoring system, allowing the machine to maintain position and stability during excavation. This modular approach enables buyers to configure the machine according to specific project requirements or tender specifications.
From a procurement standpoint, the HEKING HK150SD is designed for efficient production and export delivery. Standard payment terms include 30% down payment and 70% before delivery, with a typical production time of within 45 days after deposit receipt, supporting contractors and rental companies operating on fixed project schedules.
HEKING Amphibious Excavator Packaging & Shipping
HEKING Amphibious Excavator Certifications
HEKING HK150SD Specification
| Weight | 15000KG |
| Standard bucket capacity | 0.25m³ |
| Boom length | 4500mm |
| Arm length | 3000mm |
| Chains | 2 |
| Engine model | Yammar 4TNV98T |
| Type | inter-cooled turbo |
| Power | 54.3kW/2200rpm |
| Max.torque | 301N m / 1650rpm |
| No.of cylindar | 4 |
| Displacement | 3.319L |
| Type | Variable plunger pump |
| Max.displacement | 2250px3/r |
| Working pressure | 26.5Mpa |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Slew speed | 12rpm |
| Min.slew radius | 2257mm |
| Max.travel speed high/low | 3.79/2.33km/h |
| Gradeability | 35° |
| Tracktive effort | 112.2kN |
| Max.digging force of bucket | 49kN |
| Max.digging force of arm | 43.4kN |
| Ground pressure | 0.13kg/cm2 |
| Fuel tank capacity | 300L |
| Hydraulic tank capacity | 210L |

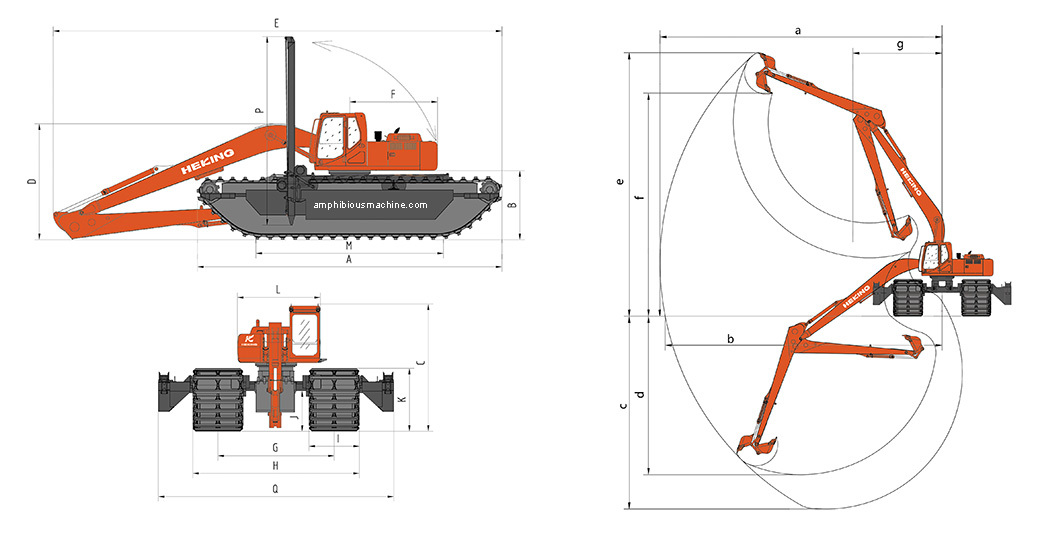

| Item | Standard(mm) |
| Length of pontoon | 6640 |
| Ground clearance of platform | 1474 |
| Overall height | 3294 |
| Boom transport height | 3294 |
| Overall length | 9009 |
| Rear swing radius | 2130 |
| Track gauge | 2050-3100 |
| Overall width | 3500-4548 |
| Width of pontoon | 1298 |
| Min.ground clearance | 717 |
| Height of pontoon | 1420 |
| Width of upper structure | 2207 |
| Ground length | 3500 |
| Item | Standard(mm) |
| Max.digging reach | 8996 |
| Max.digging reach on ground | 8772 |
| Max.digging depth | 5879 |
| Max.vertical digging depth | 4796 |
| Max.digging height | 8443 |
| Max.dumping height | 6457 |
| Min.front slewing radius | 3524 |
Q1: What types of projects is the HEKING HK150SD suitable for?
A: It is suitable for wetland restoration, river and canal dredging, irrigation projects, shoreline maintenance, and soft-ground construction.
Q2: Is this amphibious excavator suitable for Europe and Middle East markets?
A: Yes. The Yanmar engine and Toshiba hydraulic components are widely accepted and serviceable in both regions.
Q3: Can the machine operate in deep water conditions?
A: Yes. Optional additional pontoons and a spud system are available for improved stability in deeper water.
Q4: What is the delivery and production lead time?
A: Production is typically completed within 45 days after receiving the down payment.
Q5: Is the HK150SD suitable for rental fleets?
A: Yes. Its stable configuration, moderate size, and low operating cost make it suitable for long-term rental use.
Q6: How does the extendable undercarriage benefit operations?
A: It allows width adjustment for better stability during work and easier transport between job sites.
Q7: What are the standard payment terms for bulk orders?
A: Payment is usually 30% T/T in advance and 70% before delivery.
