| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | Paypal, L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean |
| Delivery Date: | Within 45 days after... |
| Brand Name: | HEKING |
| Weight: | 15ton | Max.digging reach: | 9m |
|---|---|---|---|
| Standard bucket capacity: | 0.2m³ | Overall length: | 9m |
| Overall width: | 3.5m-4.55m | Overall height: | 3.3m |
| Engine: | Yanmar 4TNV98T | Pump: | Toshiba PVC90RC06 |
| Valve: | Toshiba IB18-8021 | Swing motor: | Toshiba SG025E-136 |
15 Ton Amphibious Excavator for swamp, river and soft terrain operations.
Four travel motors for superior traction and stability
Large buoyancy pontoons for safe floating operations
Hydraulic extendable undercarriage for width adjustment
Reliable Yanmar turbo engine with low fuel consumption
Toshiba hydraulic system ensures smooth multi-action control
Low ground pressure (0.13 kg/cm²) for swamp environments
Strong bucket and arm digging force for demanding projects
Optional additional pontoon and spud for deeper water work
Designed for Europe & Middle East climate adaptability
Engineered for Extreme Wetland Conditions
The HEKING HK150SD Amphibious Excavator 15ton is specifically developed for operations in marshes, swamps, rivers, lakes, dredging sites, and soft terrain construction environments. With a 15,000 kg operating weight and reinforced amphibious undercarriage system, this machine delivers exceptional flotation and stability even in unstable ground conditions where conventional crawler excavators cannot operate.
Designed for contractors in Europe and the Middle East, this 15 ton amphibious excavator combines durability, fuel efficiency, and hydraulic precision to meet the demands of infrastructure development, drainage projects, oil & gas field preparation, environmental remediation, and water conservancy construction.
Powerful Yanmar Engine with Efficient Hydraulics
Equipped with the Yanmar 4TNV98T inter-cooled turbo diesel engine, the HK150SD delivers 54.3 kW at 2200 rpm and a maximum torque of 301 Nm at 1650 rpm. This engine is well known for reliability, low fuel consumption, and stable output in high-temperature regions.
The hydraulic system integrates a Toshiba PVC90RC06 variable plunger pump and Toshiba IB18-8021 main valve, ensuring smooth multi-function operation. With a working pressure of 26.5 MPa, operators benefit from precise control during dredging, lifting, and excavation tasks. The fixed plunger slew motor and variable plunger travel motors enhance motion stability and response speed.
Specification
| Weight | 15000KG | ||||
| Standard bucket capacity | 0.25m³ | ||||
| Boom length | 4500mm | ||||
| Arm length | 3000mm | ||||
| Chains | 2 | ||||
| Engine model | Yammar 4TNV98T | ||||
| Type | inter-cooled turbo | ||||
| Power | 54.3kW/2200rpm | ||||
| Max.torque | 301N m / 1650rpm | ||||
| No.of cylindar | 4 | ||||
| Displacement | 3.319L | ||||
| Type | Variable plunger pump | ||||
| Max.displacement | 2250px3/r | ||||
| Working pressure | 26.5Mpa | ||||
| Slew motor | fixed plunger | ||||
| Travel motor | variable plunger | ||||
| Slew speed | 12rpm | ||||
| Min.slew radius | 2257mm | ||||
| Max.travel speed high/low | 3.79/2.33km/h | ||||
| Gradeability | 35° | ||||
| Tracktive effort | 112.2kN | ||||
| Max.digging force of bucket | 49kN | ||||
| Max.digging force of arm | 43.4kN | ||||
| Ground pressure | 0.13kg/cm2 | ||||
| Fuel tank capacity | 300L | ||||
| Hydraulic tank capacity | 210L | ||||

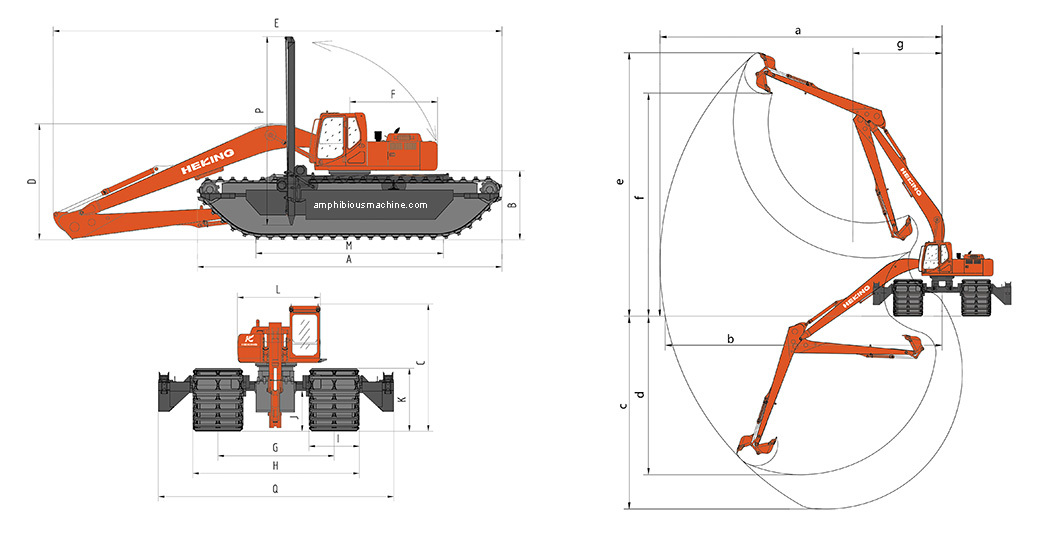

| Item | Standard(mm) | ||||
| Length of pontoon | 6640 | ||||
| Ground clearance of platform | 1474 | ||||
| Overall height | 3294 | ||||
| Boom transport height | 3294 | ||||
| Overall length | 9009 | ||||
| Rear swing radius | 2130 | ||||
| Track gauge | 2050-3100 | ||||
| Overall width | 3500-4548 | ||||
| Width of pontoon | 1298 | ||||
| Min.ground clearance | 717 | ||||
| Height of pontoon | 1420 | ||||
| Width of upper structure | 2207 | ||||
| Ground length | 3500 | ||||
| Item | Standard(mm) | ||||
| Max.digging reach | 8996 | ||||
| Max.digging reach on ground | 8772 | ||||
| Max.digging depth | 5879 | ||||
| Max.vertical digging depth | 4796 | ||||
| Max.digging height | 8443 | ||||
| Max.dumping height | 6457 | ||||
| Min.front slewing radius | 3524 | ||||
| Engine | Yanmar 4TNV98T | ||
| Pump | Toshiba PVC90RC06 | ||
| Valve | Toshiba IB18-8021 | ||
| Swing motor | Toshiba SG025E-136 | ||
| Travel motor | DOOSAN TM22VC | ||
| Travel motor no. | 4 | ||
Unlike standard excavators, this Amphibious Excavator 15ton features four DOOSAN TM22VC travel motors. This configuration provides balanced power distribution across the pontoons, improving maneuverability in muddy or waterlogged terrain.
The hydraulic extendable undercarriage allows the track gauge to expand from 2050 mm to 3100 mm, increasing stability during operation. Strengthened track shoes and chains further enhance durability and resistance to wear in abrasive environments.
Low ground pressure of 0.13 kg/cm² minimizes sinking risks and protects fragile ecological surfaces.
With a maximum digging reach of 8,996 mm and a maximum digging depth of 5,879 mm, the HK150SD is ideal for river dredging and slope shaping projects. The 0.25 m³ standard bucket provides a balanced combination of capacity and control.
Key performance capabilities include:
Max digging height: 8,443 mm
Max dumping height: 6,457 mm
Bucket digging force: 49 kN
Arm digging force: 43.4 kN
Gradeability: 35°
These specifications make the machine suitable for embankment construction, drainage canal excavation, and waterway maintenance.
The reinforced pontoons provide large buoyancy and structural rigidity. Platform ground clearance of 1474 mm and pontoon height of 1420 mm enhance flotation performance.
For deeper water operations, optional additional pontoons and spuds are available. This configuration increases operational safety during stationary dredging and hydraulic engineering projects.
Amphibious Excavator certificate
Q1: What applications is this 15 ton amphibious excavator suitable for?
A: It is ideal for river dredging, swamp construction, marshland projects, drainage systems, and water conservancy engineering.
Q2: Can the machine operate in deep water?
A: Yes. With optional additional pontoons and spuds, it can perform stable operations in deeper water environments.
Q3: How does the four-motor system benefit performance?
A: Four travel motors distribute torque evenly, improving traction, maneuverability, and operational safety in soft terrain.
Q4: Is the engine suitable for hot Middle East climates?
A: The Yanmar turbocharged engine is designed for high-temperature durability and stable continuous output.
Q5: What is the production lead time for bulk orders?
A: Production is completed within 45 days after receipt of the down payment.
Q6: What is the minimum ground pressure?
A: Ground pressure is only 0.13 kg/cm², making it suitable for fragile swamp surfaces.
Q7: Are spare parts easily available for Europe buyers?
A: Yes. Core components such as Yanmar engine and Toshiba hydraulic parts have international supply channels.
