| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,DAT |
| Payment Terms: | L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean |
| Delivery Date: | Within 45 days after receipt of down payment |
| Brand Name: | HEKING |
| Product Type: | Amphibious Excavator |
| Model: | HK150SD | Operating Weight: | 15,000 kg |
|---|---|---|---|
| Standard Bucket Capacity: | 0.25 m³ | Maximum Digging Reach: | 8,996 mm |
| Maximum Digging Depth: | 5,879 mm | Ground Pressure: | 0.13 kg/cm² |
| Engine: | Yanmar 4TNV98T | Engine Power: | 54.3 kW / 2,200 rpm |
| Undercarriage: | Amphibious pontoon undercarriage with hydraulically extendable track gauge |

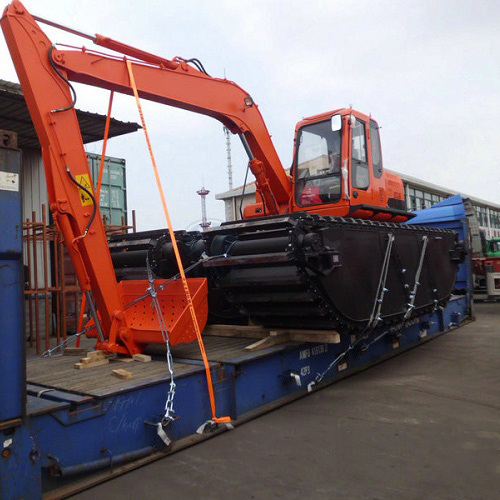

The HEKING HK150SD is a 15 ton amphibious excavator developed for excavation work where conventional crawler excavators may not be suitable for the existing ground conditions. Its configuration combines an excavator upper structure with an amphibious pontoon undercarriage designed to provide buoyancy and low ground pressure in wetland and soft-ground environments.
The HK150SD is intended for applications such as wetland construction, swamp operations, river dredging and excavation in water-adjacent or saturated ground conditions. Its amphibious undercarriage incorporates four travel motors, strengthened track shoes and chains, large buoyancy, and an extendable track gauge.
The detailed specifications provide a maximum digging reach of 8,996 mm, maximum digging depth of 5,879 mm, maximum digging height of 8,443 mm and maximum dumping height of 6,457 mm. The machine has a stated ground pressure of 0.13 kg/cm² and a gradeability of 35°.

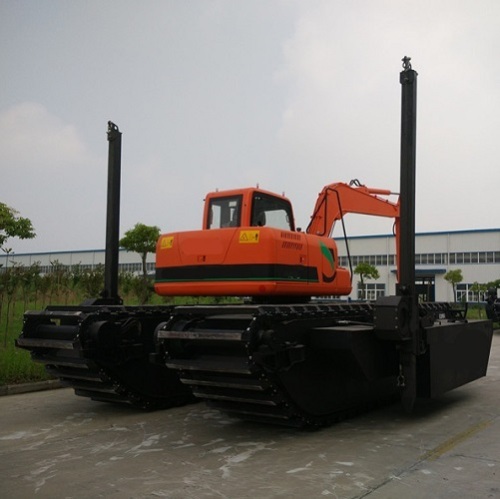

For projects involving deeper water, the product information specifies an optional additional pontoon and spud configuration. Buyers should confirm the required working depth, water conditions and final machine configuration before quotation.
The undercarriage is a key part of the HK150SD's application-oriented configuration.
The supplied product information identifies four main undercarriage characteristics:
Four travel motors
Strengthened track shoes and chains
Large buoyancy
Hydraulically extendable undercarriage
The track gauge can be adjusted from 2,050 mm to 3,100 mm according to the supplied dimensional specifications, while the overall width is listed as 3,500–4,548 mm.
This configuration is intended to support operation across wet, soft and unstable working areas where ground contact conditions are different from those encountered by conventional excavators.
The stated minimum ground clearance is 717 mm, while the ground clearance of the platform is 1,474 mm. The pontoon dimensions are listed as 6,640 mm in length, 1,298 mm in width and 1,420 mm in height.
For procurement, the undercarriage configuration should be evaluated together with the project's ground conditions, water conditions, access restrictions and required operating area.
The HK150SD has a stated ground pressure of 0.13 kg/cm². For wetland and soft-ground projects, ground pressure is an important parameter because the machine must operate on terrain with limited load-bearing capability.
The low-ground-pressure configuration works together with the amphibious pontoon undercarriage rather than functioning as an isolated specification.
The supplied dimensions specify a track gauge of 2,050–3,100 mm and an overall width of 3,500–4,548 mm.
The extendable configuration allows the machine's undercarriage width to be adjusted within the stated range. The required operating position should be determined according to project conditions and equipment configuration.

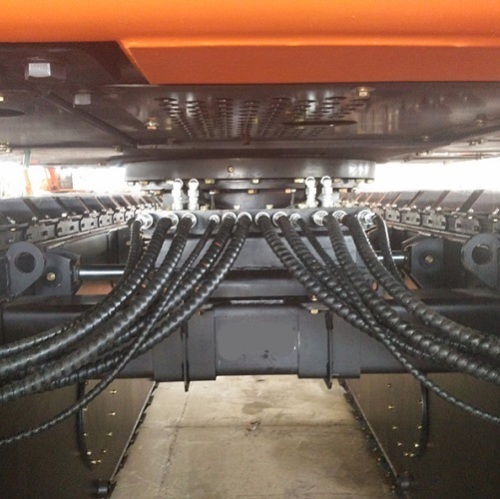

The HK150SD is specified with four travel motors. The product information identifies the travel motor as a variable-plunger type and specifies four travel motors.
The four-motor arrangement forms part of the amphibious undercarriage system and should be considered when evaluating the machine for soft-ground mobility and project access.

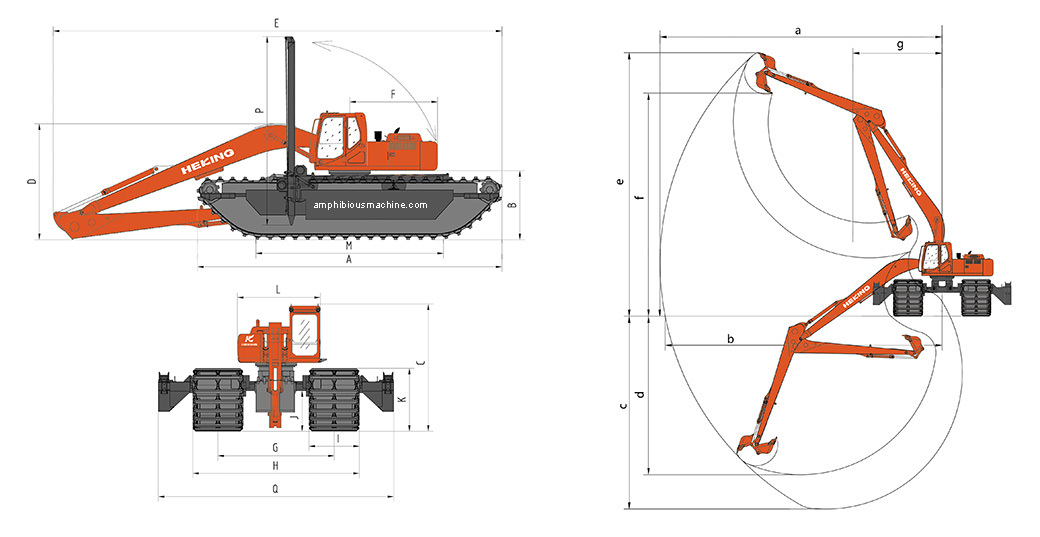

The detailed specifications provide:
Maximum digging reach: 8,996 mm
Maximum digging reach on ground: 8,772 mm
Maximum digging depth: 5,879 mm
Maximum vertical digging depth: 4,796 mm
Maximum digging height: 8,443 mm
Maximum dumping height: 6,457 mm
Maximum bucket digging force: 49 kN
Maximum arm digging force: 43.4 kN
These values provide the technical basis for evaluating the HK150SD against the working geometry required by a specific excavation or dredging project.
The HK150SD is equipped with a Yanmar 4TNV98T engine. The supplied engine specifications identify an inter-cooled turbo configuration, four cylinders, 3.319 L displacement, rated power of 54.3 kW at 2,200 rpm, and maximum torque of 301 N·m at 1,650 rpm.
The hydraulic specification identifies a variable plunger pump with a maximum displacement of 90 cm³/r and a stated working pressure of 26.5 MPa.
The supplied component information includes Toshiba PVC90RC06 for the pump, Toshiba IB18-8021 for the valve, and Toshiba SG025E-136 for the swing motor.
The HK150SD is suited to project environments where excavation equipment needs to work on wet, soft or water-affected terrain.
Industry: Environmental and civil engineering
Application: Excavation and construction work in wetlands and saturated ground
Operating Environment: Wetland and soft-ground areas
The amphibious undercarriage and low stated ground pressure make the HK150SD applicable to wetland construction projects where conventional equipment access may be constrained by ground conditions.
Industry: Wetland and environmental engineering
Application: Excavation and material handling in swamp and marsh environments
Operating Environment: Soft, saturated and unstable ground
The pontoon undercarriage is designed around the requirements of amphibious operation, while the extendable track gauge provides a configurable undercarriage width.
Industry: Waterway and civil engineering
Application: River excavation and dredging-related work
Operating Environment: Riverbanks, shallow water and wet ground
The HK150SD provides a maximum digging reach of 8,996 mm according to the supplied specifications. Project teams can use the machine's digging geometry to assess whether the reach and depth are appropriate for the required work area.
Industry: Environmental and water engineering
Application: Excavation near water and on water-affected terrain
Operating Environment: Wet ground and water-adjacent areas
Where deeper water access is required, the supplied product information identifies an optional additional pontoon and spud configuration. The final configuration should be confirmed according to the project's operating conditions.
| Item | Specification |
| Model | HK150SD |
| Product Type | Amphibious Excavator |
| Operating Weight | 15,000 kg |
| Standard Bucket Capacity | 0.25 m³ |
| Boom Length | 4,500 mm |
| Arm Length | 3,000 mm |
| Chains | 2 |
| Engine Model | Yanmar 4TNV98T |
| Engine Type | Inter-cooled turbo |
| Engine Power | 54.3 kW / 2,200 rpm |
| Maximum Torque | 301 N·m / 1,650 rpm |
| Number of Cylinders | 4 |
| Engine Displacement | 3.319 L |
| Pump Type | Variable plunger pump |
| Maximum Pump Displacement | 90 cm³/r |
| Working Pressure | 26.5 MPa |
| Slew Motor Type | Fixed plunger |
| Travel Motor Type | Variable plunger |
| Slew Speed | 12 rpm |
| Minimum Slew Radius | 2,257 mm |
| Maximum Travel Speed, High/Low | 3.79 / 2.33 km/h |
| Gradeability | 35° |
| Tractive Effort | 112.2 kN |
| Maximum Bucket Digging Force | 49 kN |
| Maximum Arm Digging Force | 43.4 kN |
| Ground Pressure | 0.13 kg/cm² |
| Fuel Tank Capacity | 300 L |
| Hydraulic Tank Capacity | 210 L |
| Pontoon Length | 6,640 mm |
| Pontoon Width | 1,298 mm |
| Pontoon Height | 1,420 mm |
| Platform Ground Clearance | 1,474 mm |
| Minimum Ground Clearance | 717 mm |
| Track Gauge | 2,050–3,100 mm |
| Overall Width | 3,500–4,548 mm |
| Overall Height | 3,294 mm |
| Overall Length | 9,009 mm |
| Ground Length | 3,500 mm |
| Upper Structure Width | 2,207 mm |
| Rear Swing Radius | 2,130 mm |
| Maximum Digging Reach | 8,996 mm |
| Maximum Digging Reach on Ground | 8,772 mm |
| Maximum Digging Depth | 5,879 mm |
| Maximum Vertical Digging Depth | 4,796 mm |
| Maximum Digging Height | 8,443 mm |
| Maximum Dumping Height | 6,457 mm |
| Minimum Front Slewing Radius | 3,524 mm |
| Engine | Yanmar 4TNV98T |
| Pump | Toshiba PVC90RC06 |
| Valve | Toshiba IB18-8021 |
| Swing Motor | Toshiba SG025E-136 |
| Travel Motor | DOOSAN TM22VC* |
| Travel Motor Number | 4 |
| Optional Configuration | Additional pontoon and spud for deep-water applications |
The supplied product information also lists the travel motor as DOOSAN TM10VC, while the detailed specification lists DOOSAN TM22VC. The final travel motor configuration should therefore be confirmed with the supplier before quotation or purchase.
The HK150SD combines an excavator with an amphibious pontoon undercarriage, making it applicable to wetland, swamp and water-affected working environments.
Four travel motors are specified for the amphibious undercarriage. This configuration is part of the machine's mobility system for difficult ground conditions.
The track gauge is specified at 2,050–3,100 mm, allowing the undercarriage width to be configured within the stated range for operating requirements.
The specified ground pressure is 0.13 kg/cm², providing a measurable parameter for buyers assessing suitability for soft-ground projects.
The HK150SD has a maximum digging reach of 8,996 mm and maximum digging depth of 5,879 mm according to the supplied specifications.
An additional pontoon and spud are listed as optional equipment for deep-water applications. The required configuration should be confirmed according to actual project conditions.
Before requesting a quotation for the HK150SD, project buyers should confirm the working conditions and required configuration.
Provide information about whether the machine will operate primarily on wetland, swamp, soft ground, riverbanks, shallow water or deeper water.
Confirm the required digging reach, digging depth, dumping height and working radius against the stated HK150SD specifications.
The specified track gauge is 2,050–3,100 mm and overall width is 3,500–4,548 mm. Buyers should check these dimensions against transportation routes, access points and project working areas.
If the machine will operate in deeper water, discuss the optional additional pontoon and spud configuration before placing the order.
The supplied information contains two different travel motor model references: DOOSAN TM10VC in the general product information and DOOSAN TM22VC in the detailed specification. The final configuration should be confirmed in the technical quotation or order documentation.
The supplied information also gives a standard bucket capacity of 0.2 m³ in the feature description and 0.25 m³ in the detailed specification table. Buyers should confirm the final standard bucket configuration before purchase.
Payment Terms: T/T, 30% down payment and 70% paid before delivery.
Production Time: Within 45 days after receipt of down payment.
For project procurement, buyers should provide the intended application, operating environment and required configuration when requesting a quotation so that the technical specification can be confirmed before order placement.
This application page supports buyers evaluating amphibious excavators for river dredging projects.
The HK150SD is a 15 ton amphibious excavator intended for wetland, swamp, soft-ground, river dredging and water-adjacent excavation applications.
The detailed specifications state a maximum digging reach of 8,996 mm and a maximum digging reach on the ground of 8,772 mm.
The detailed specification lists a standard bucket capacity of 0.25 m³. The general product information separately lists 0.2 m³, so the final bucket configuration should be confirmed before purchase.
The detailed specifications list a track gauge of 2,050–3,100 mm and an overall width of 3,500–4,548 mm.
Yes. The supplied product information identifies a hydraulically extendable undercarriage, and the detailed dimensions specify an adjustable track gauge of 2,050–3,100 mm.
The product information lists an additional pontoon and spud as an optional configuration for deep-water applications. Buyers should confirm the required configuration based on actual water depth and operating conditions.
The machine is specified with a Yanmar 4TNV98T engine. The detailed specification gives 54.3 kW at 2,200 rpm, 301 N·m maximum torque at 1,650 rpm, four cylinders and 3.319 L displacement.
The supplied commercial information specifies T/T payment with 30% down payment and 70% paid before delivery. Production time is stated as within 45 days after receipt of the down payment.
For a quotation or technical discussion, provide the following project information where available:
Intended application
Working environment
Required digging reach and depth
Water or ground conditions
Required operating width
Whether deep-water operation is required
Required optional equipment
Delivery destination
Contact HEKING to confirm the HK150SD configuration, technical specifications, commercial terms and supply requirements for your project.
