| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean |
| Delivery Date: | within 45 days after receipt of down payment |
| Brand Name: | HEKING |
| Product Type: | Amphibious Excavator |
| Model: | HK300SDA | Total Weight: | 36,000 kg |
|---|---|---|---|
| Max. Digging Reach: | 15,426 mm | Standard Bucket Capacity: | 0.5 m³ |
| Engine: | Mitsubishi 4M50-TLC3J / Isuzu 6BG1TRP-03 | Engine Power: | 118 kW at 2,000 rpm |
| Ground Pressure: | 0.14 kg/cm² | Working Pressure: | 32 MPa |
| Travel Motor Quantity: | 4 |

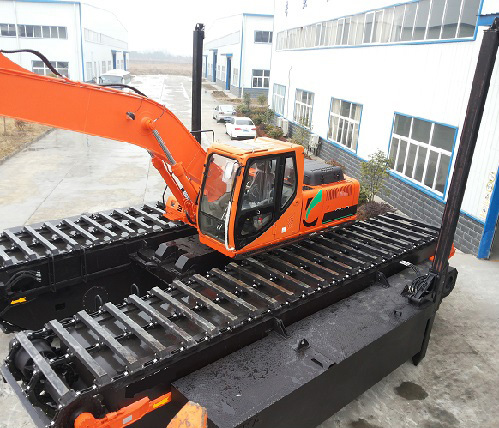

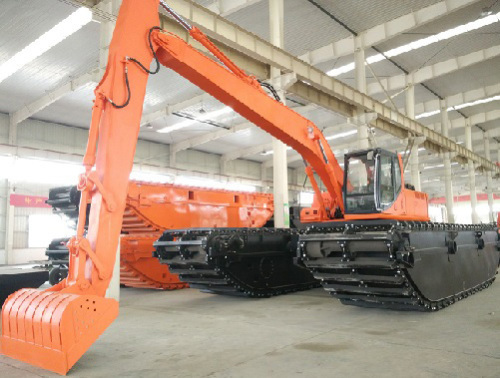

The HEKING HK300SDA is a 36 ton amphibious excavator developed around an amphibious pontoon undercarriage and long-reach working configuration. It is intended for excavation and material-handling work where conventional excavators may face difficult access or low-bearing-capacity ground conditions.
The machine combines a hydraulic excavator upper structure with a buoyant pontoon-based undercarriage. Its long-reach configuration provides a maximum digging reach of 15,426 mm, while the published maximum digging depth is 10,858 mm. The standard bucket capacity is 0.5 m³.
For buyers evaluating equipment for wetland construction, river work, dredging or other water-area projects, the HK300SDA provides a machine configuration centered on reach, low ground pressure and amphibious mobility.
The undercarriage uses Q345B material and incorporates strengthened track shoes and chains, four travel motors and a pontoon structure. The published ground pressure is 0.14 kg/cm². An additional pontoon and spud configuration is available for deep-water applications.
The HK300SDA has a boom length of 8,600 mm and arm length of 6,260 mm. Its maximum digging reach is 15,426 mm, with a maximum digging reach on ground of 15,203 mm.
This reach configuration is relevant when excavation or dredging work requires the machine to operate from a relatively fixed position while reaching material farther from the machine platform.

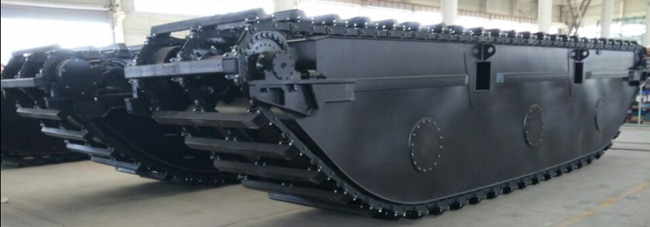

The amphibious undercarriage incorporates pontoons and tracks to provide buoyancy and mobility in wetland and water-area working environments. The published pontoon dimensions are approximately 9,632 mm in length, 1,620 mm in width and 2,050 mm in height.
The machine has a minimum ground clearance of 1,126 mm and a published ground pressure of 0.14 kg/cm².
The HK300SDA uses four travel motors. The specified travel motor is DOOSAN TM40VC, with four units listed in the product configuration.
The travel system provides high/low travel speeds of 3.3 km/h and 2.17 km/h respectively.
The undercarriage uses Q345B material and includes strengthened track shoes and chains. The supplied product information also specifies 40Cr rollers.
The pontoon structure has a listed top thickness of 6 mm, side thickness of 6 mm and bottom thickness of 8 mm.
The hydraulic system is specified with a Doosan T5V112 variable plunger pump, Parker AV280 valve, Eaton 11020268501 swing motor and DOOSAN TM40VC travel motors.
The listed maximum pump displacement is 2 × 112 cm³/r, maximum flow is 2 × 240 L/min, and working pressure is 32 MPa.
The HK300SDA combines a long-reach hydraulic excavator configuration with an amphibious undercarriage. This configuration is particularly relevant when a project requires both extended working reach and operation on wet or low-bearing-capacity terrain.
The upper structure has an overall width range of 4,719 to 5,519 mm, while the pontoon width is 1,620 mm. The track gauge is 3,725 mm and the ground length is 5,300 mm.
The published maximum digging height is 14,101 mm and maximum dumping height is 11,889 mm. Maximum vertical digging depth is 10,420 mm.
The machine's hydraulic configuration includes a variable plunger pump, fixed-plunger slew motor and variable-plunger travel motors. The listed slew speed is 11 rpm.
The rated engine configuration is Mitsubishi 4M50-TLC3J or Isuzu 6BG1TRP-03, with an inter-cooled turbo type, 118 kW power at 2,000 rpm, maximum torque of 620 N·m at 1,500 rpm, four cylinders and 4.899 L displacement.
The HK300SDA is configured for work where excavation reach and amphibious access are important considerations.

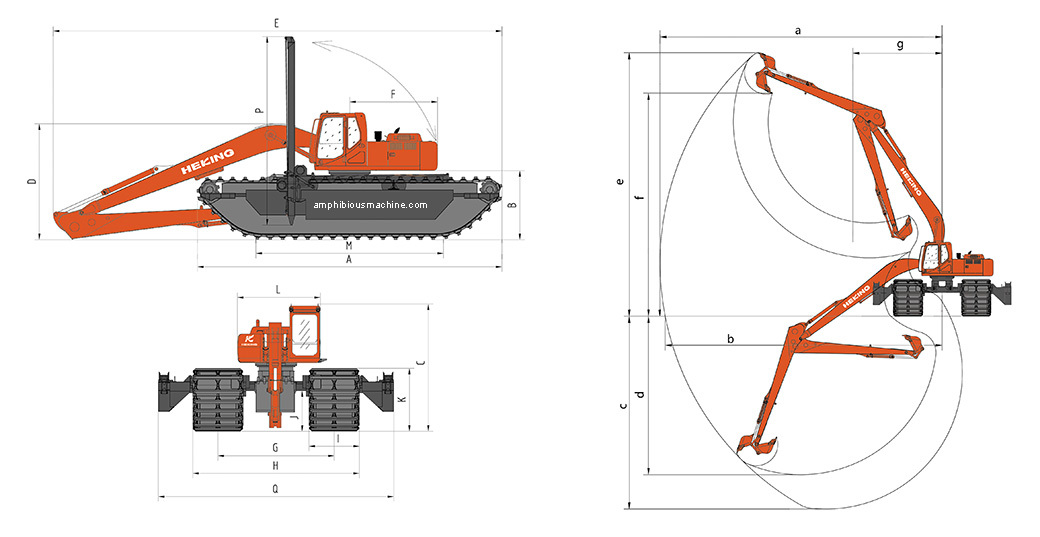

Its long boom and arm provide a maximum digging reach of more than 15 meters. The published working range includes:
Maximum digging reach: 15,426 mm
Maximum digging reach on ground: 15,203 mm
Maximum digging depth: 10,858 mm
Maximum vertical digging depth: 10,420 mm
Maximum digging height: 14,101 mm
Maximum dumping height: 11,889 mm
Minimum front slewing radius: 4,884 mm
The machine has a listed gradeability of 35° (70%) and tractive effort of 382.4 kN. Maximum bucket digging force is 122.85 kN, while maximum arm digging force is 97.64 kN.
These figures should be evaluated against the actual site conditions, attachment configuration and project requirements before procurement.
The HK300SDA is suited to project environments where a long-reach excavator configuration and amphibious undercarriage are relevant.

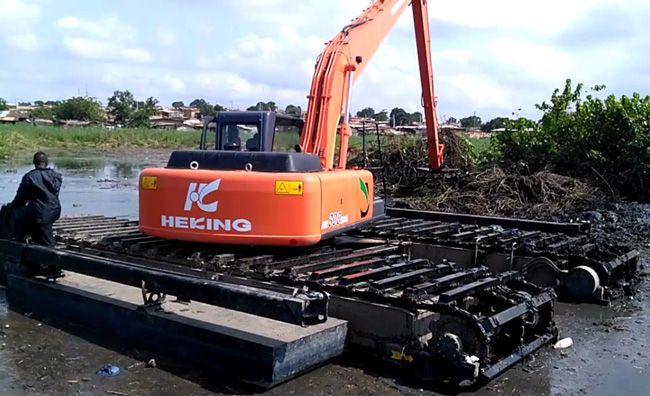

The amphibious configuration is intended for excavation work in wet and low-bearing-capacity terrain. The low published ground pressure and buoyant pontoon undercarriage are key product characteristics for this type of operating environment.
The long-reach configuration can be considered for river and waterway excavation where the required working envelope extends beyond the immediate machine position.
The 15,426 mm maximum digging reach and 10,858 mm maximum digging depth make the HK300SDA relevant to project evaluations involving extended-reach excavation or dredging work.

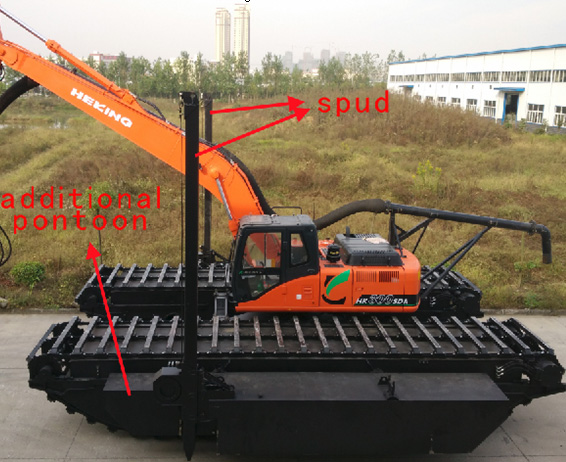

An additional pontoon and spud configuration is available for deep-water applications. The exact configuration should be confirmed according to project water depth, operating conditions and equipment requirements.
The amphibious undercarriage is designed around buoyancy and low ground pressure rather than a conventional crawler excavator configuration. This makes the HK300SDA applicable to project environments involving swamp, marsh and other soft-ground conditions where access is an important equipment-selection factor.
With a published maximum digging reach of 15,426 mm, the HK300SDA is configured for projects requiring an extended working envelope.
The machine has a published ground pressure of 0.14 kg/cm², supporting evaluation for wetland and soft-ground applications where ground-bearing conditions are important.
Four DOOSAN TM40VC travel motors are specified for the amphibious undercarriage, with high and low travel speeds of 3.3 km/h and 2.17 km/h.
The undercarriage uses Q345B material, strengthened track shoes and chains, and specified pontoon plate thicknesses of 6 mm at the top, 6 mm at the side and 8 mm at the bottom.
An additional pontoon and spud can be supplied as an optional configuration for deep-water applications, subject to project requirements.
The machine is specified with a Doosan T5V112 pump, Parker AV280 valve, Eaton swing motor and DOOSAN travel motors, providing buyers with a clearly defined hydraulic component configuration for technical evaluation.
| Item | Specification |
| Model | HK300SDA |
| Product Type | Amphibious Excavator |
| Total Weight | 36,000 kg |
| Standard Bucket Capacity | 0.5 m³ |
| Boom Length | 8,600 mm |
| Arm Length | 6,260 mm |
| Chain Strands per Side | 3 |
| Engine Model | Mitsubishi 4M50-TLC3J / Isuzu 6BG1TRP-03 |
| Engine Type | Inter-cooled turbo |
| Engine Power | 118 kW / 2,000 rpm |
| Maximum Torque | 620 N·m / 1,500 rpm |
| Number of Cylinders | 4 |
| Engine Displacement | 4.899 L |
| Pump Type | Variable plunger pump |
| Maximum Pump Displacement | 2 × 112 cm³/r |
| Maximum Flow | 2 × 240 L/min |
| Working Pressure | 32 MPa |
| Slew Motor | Fixed plunger |
| Travel Motor | Variable plunger |
| Slew Speed | 11 rpm |
| Minimum Slew Radius | 3,554 mm |
| Maximum Travel Speed, High/Low | 3.3 / 2.17 km/h |
| Gradeability | 35° (70%) |
| Tractive Effort | 382.4 kN |
| Maximum Bucket Digging Force | 122.85 kN |
| Maximum Arm Digging Force | 97.64 kN |
| Ground Pressure | 0.14 kg/cm² |
| Fuel Tank Capacity | 376 L |
| Hydraulic Tank Capacity | 219 L |
| Pontoon Length | 9,632 mm |
| Pontoon Width | 1,620 mm |
| Pontoon Height | 2,050 mm |
| Ground Clearance of Platform | 1,936 mm |
| Minimum Ground Clearance | 1,126 mm |
| Overall Height | 3,759 mm |
| Boom Transport Height | 3,379 mm |
| Overall Length | 14,330 mm |
| Rear Swing Radius | 2,800 mm |
| Track Gauge | 3,725 mm |
| Overall Width, Min/Max | 4,719 / 5,519 mm |
| Upper Structure Width | 2,622 mm |
| Ground Length | 5,300 mm |
| Maximum Digging Reach | 15,426 mm |
| Maximum Digging Reach on Ground | 15,203 mm |
| Maximum Digging Depth | 10,858 mm |
| Maximum Vertical Digging Depth | 10,420 mm |
| Maximum Digging Height | 14,101 mm |
| Maximum Dumping Height | 11,889 mm |
| Minimum Front Slewing Radius | 4,884 mm |
| Pump | Doosan T5V112 |
| Valve | PARKER AV280 |
| Swing Motor | Eaton 11020268501 |
| Travel Motor | DOOSAN TM40VC |
| Travel Motor Quantity | 4 |
| Undercarriage Material | Q345B |
| Pontoon Top Thickness | 6 mm |
| Pontoon Side Thickness | 6 mm |
| Pontoon Bottom Thickness | 8 mm |
| Optional Configuration | Additional pontoon and spud for deep water |
Before purchasing an HK300SDA amphibious excavator, project buyers should confirm the machine configuration against the actual working environment and required working envelope.
Confirm whether the project involves wetland, swamp, soft ground, river, dredging or deep-water conditions. Water depth, ground conditions, access limitations and working position can affect the appropriate machine configuration.
The HK300SDA has a maximum digging reach of 15,426 mm. Buyers should compare this published reach with the required excavation distance, digging depth and dumping position of the project.
The standard amphibious configuration should be evaluated against the site's buoyancy and mobility requirements. For deep-water applications, the additional pontoon and spud option should be discussed during technical specification confirmation.
The standard bucket capacity is 0.5 m³. Buyers requiring a different attachment or working configuration should confirm availability and compatibility with the supplier before placing an order.
The published overall dimensions are approximately 14,330 mm in length and 4,719–5,519 mm in width, with an overall height of 3,759 mm. Buyers should check transportation, loading, unloading and site-access requirements against these dimensions.
Payment Terms: T/T, 30% down payment and 70% paid before delivery.
Production Time: Within 45 days after receipt of down payment.
For project procurement, buyers should provide the intended working environment, required reach and digging depth, water or wetland conditions, and any deep-water configuration requirements when requesting a quotation.
This information allows the product configuration to be reviewed against the actual project requirements before order confirmation.
The HK300SDA is a 36 ton amphibious excavator with a long-reach configuration. Its published specifications make it relevant to project evaluation for wetland, soft-ground, river, dredging and water-area excavation work.
The maximum digging reach is 15,426 mm. The maximum digging reach on ground is 15,203 mm.
The published maximum digging depth is 10,858 mm, while the maximum vertical digging depth is 10,420 mm.
The standard bucket capacity is 0.5 m³.
The HK300SDA is specified with four DOOSAN TM40VC travel motors.
Yes. The supplied product information specifies an optional additional pontoon and spud for deep-water applications. The exact configuration should be confirmed according to the project conditions.
The listed engine options are Mitsubishi 4M50-TLC3J and Isuzu 6BG1TRP-03. The specified engine power is 118 kW at 2,000 rpm.
The supplied commercial terms specify T/T with 30% down payment and 70% paid before delivery. Production time is stated as within 45 days after receipt of the down payment.
For an HK300SDA amphibious excavator quotation, provide your project application, working environment, required digging reach and depth, water or wetland conditions, and any deep-water configuration requirements.
You can also request confirmation of the machine specifications, available configuration and supply terms before placing an order.
