| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | Paypal, T/T, WU |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 40 days after... |
| Brand Name: | HEKING |
| Operating Weight Class: | 30,000 kg heavy-duty amphibious excavator platform | Standard Bucket Capacity: | 0.8-0.9 m³ for high-volume dredging efficiency |
|---|---|---|---|
| Maximum Digging Reach: | Approx. 10.0 m working radius | Engine Configuration: | Isuzu 6BG1TRP-03 / Mitsubishi 4M50 turbo diesel options |
| Rated Engine Power: | Up to 118 kW at 2000 rpm for demanding operations | Hydraulic System Type: | Dual variable plunger pump, 32 MPa working pressure |
| Travel Drive System: | DOOSAN TM60VC motors with 2-motor configuration | Ground Pressure Rating: | Approx. 0.14 kg/cm² for soft soil and floating work |
| Pontoon Structure Size: | 8.3 m × 1.8 m × 1.7 m high-buoyancy steel pontoon | Optional Configuration: | Additional pontoons and spud anchoring for deep water |
Heavy-duty design for large-scale water and wetland projects
Proven Isuzu and Mitsubishi engine options for global service support
High bucket capacity improves dredging productivity
Strong hydraulic output ensures stable digging under load
Low ground pressure reduces sinking and environmental impact
Reinforced pontoon structure provides excellent floating stability
Simple configuration suited for export and fleet deployment
Optional deep-water setup expands working conditions
Fast production cycle supports project-based purchasing
The HEKING HK300SD amphibious excavator is a 30-ton class heavy-duty solution designed for large-scale water engineering, dredging, and soft-ground construction projects. Built to meet the operational and procurement standards of professional buyers in Europe and the Middle East, the HK300SD delivers high output performance, structural stability, and long-term operational reliability in challenging aquatic environments.
This amphibious excavator is equipped with a high-buoyancy steel pontoon undercarriage, allowing it to operate efficiently on rivers, lakes, wetlands, coastal zones, and reclaimed land. With an average ground pressure of approximately 0.14 kg/cm², the HK300SD minimizes soil disturbance and maintains flotation where standard crawler excavators are unable to work. The pontoon dimensions of 8.3 meters in length and 1.8 meters in width provide a stable working platform even during high-load excavation.
Power is supplied by internationally recognized diesel engines, including the Isuzu 6BG1TRP-03 and Mitsubishi 4M50 turbocharged engines, delivering up to 118 kW of rated power. These engines are widely used across global construction markets, ensuring reliable performance, fuel efficiency, and ease of maintenance. The powertrain is matched with a Doosan T5V112 dual variable plunger hydraulic pump and a PARKER AV280 control valve, producing a working pressure of up to 32 MPa for smooth and precise operation.
The HK300SD offers a maximum digging reach of approximately 10 meters and supports a standard bucket capacity of up to 0.9 m³, making it suitable for high-volume dredging, sediment removal, and material handling. Strong bucket and arm digging forces enable the machine to perform efficiently in compacted silt, clay, and submerged soil conditions.
Travel and maneuverability are handled by DOOSAN TM60VC travel motors, designed for stable movement across floating pontoons and soft terrain. The slew system operates at a controlled speed of 11 rpm, allowing precise positioning during excavation and loading operations. Reinforced chain strands and undercarriage components enhance durability in long-term water-based use.
For projects requiring deeper water operation or higher current resistance, the HK300SD can be equipped with additional pontoons and a spud anchoring system. This optional setup improves stability and allows the excavator to maintain accurate working positions during dredging or excavation tasks.
From a commercial perspective, the HK300SD is optimized for export-oriented procurement. Standard payment terms include 30% T/T down payment and 70% balance before delivery, with a production lead time of approximately 40 days after deposit receipt. This makes the machine suitable for infrastructure contractors, rental fleets, and government-backed water management projects operating on strict schedules.
HEKING Amphibious Excavator Certifications

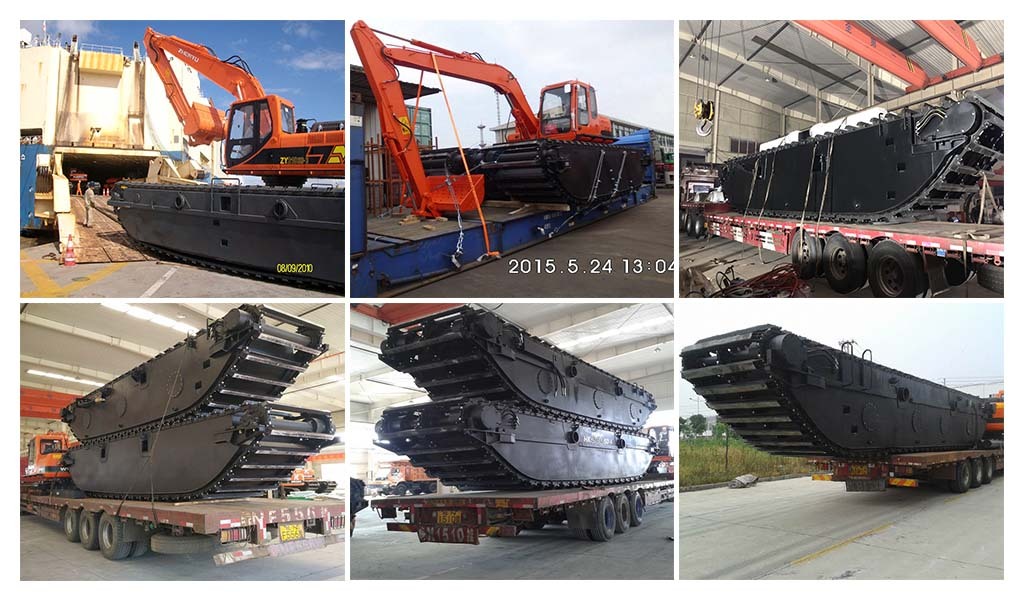

HEKING Amphibious Excavator Packaging & Shipping

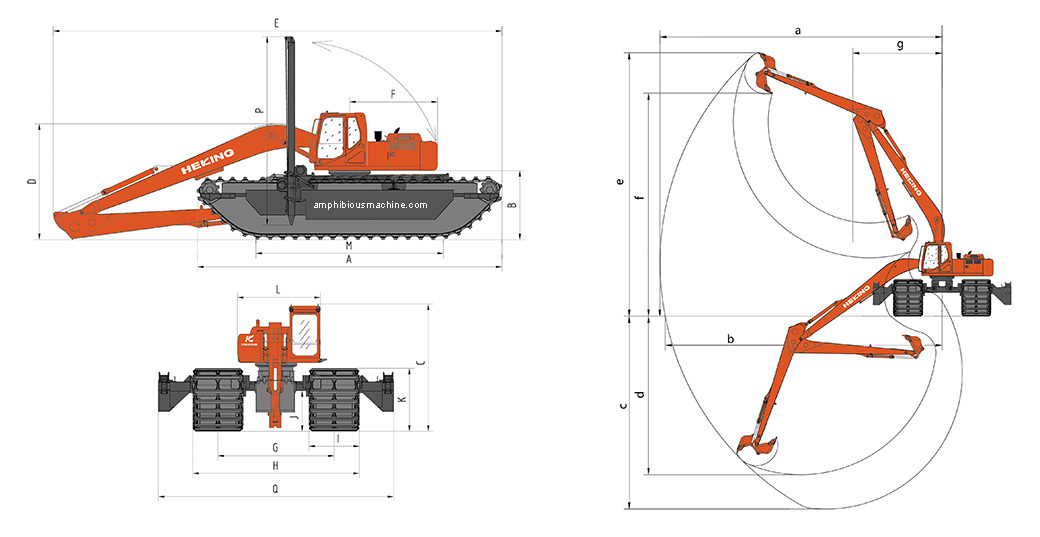

HK300SD Specification:
| Weight | 30000kg |
| Standard bucket capacity | 0.8m³ |
| Boom length | 5680 |
| Arm length | 2912 |
| Chain strands per side | 3 |
| Engine model | Mitsubishi 4M50-TLC3J |
| Type | inter-cooled turbo |
| Power | 118kW/2000rpm |
| Max.torque | 620N m / 1500rpm |
| No.of cylindar | 4 |
| Displacement | 4.899L |
| Type | Variable plunger pump |
| Max.displacement | 2X2800px3/r |
| Max.flow | 20L/min |
| Working pressure | 32Mpa |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Slew speed | 11rpm |
| Min.slew radius | 3554mm |
| Max.travel speed high/low | 3.3/2.17km/h |
| Gradeability | 0.7 |
| Tracktive effort | 382.4kN |
| Max.digging force of bucket | 122.85kN |
| Max.digging force of arm | 97.64kN |
| Ground pressure | 0.14kg/cm2 |
| Fuel tank capacity | 376L |
| Hydraulic tank capacity | 219L |
| Item | |
| Length of pontoon | 8285 |
| Ground clearance of platform | 1936 |
| Overall height | 3759 |
| Boom transport height | 3379 |
| Overall length | 10747 |
| Rear swing radius | 2800 |
| Track gauge | 3950 |
| Overall width | 5742 |
| Width of pontoon | 1800 |
| Min.ground clearance | 1126 |
| Height of pontoon | 1700 |
| Width of upper structure | 2622 |
| Ground length | 5088 |
| Item | |
| Max.digging reach | 10186 |
| Max.digging reach on ground | 10163 |
| Max.digging depth | 3201 |
| Max.vertical digging depth | 10163 |
| Max.digging height | 7027 |
| Max.dumping height | 6928 |
| Min.front slewing radius | 6550 |
| Engine | Mitsubishi 4M50-TLC3J |
| Pump | Doosan T5V112 |
| Valve | PARKER AV280 |
| Swing motor | Eaton 11020268501 |
| Travel motor | DOOSAN TM60VC |
| Travel motor no. | 2 |
Q1: What applications is the HEKING HK300SD designed for?
A: It is designed for dredging, river maintenance, wetland restoration, coastal construction, flood control, and large-scale water engineering projects.
Q2: Is the HK300SD suitable for deep water operation?
A: Yes. Optional additional pontoons and spud systems are available for enhanced stability in deeper water conditions.
Q3: Are the engine and hydraulic components serviceable in Europe and the Middle East?
A: Yes. Isuzu, Mitsubishi, Doosan, and PARKER components are widely supported in both regions.
Q4: What is the typical production lead time?
A: Production is generally completed within 40 days after receiving the down payment.
Q5: Is this model suitable for government or infrastructure tenders?
A: Yes. Its heavy-duty configuration and standardized specifications meet common tender requirements.
Q6: Can the HK300SD be used in rental fleets?
A: Yes. Its durability and stable operating performance make it suitable for long-term rental deployment.
Q7: What payment terms are available for bulk orders?
A: Standard terms are 30% T/T advance payment and 70% paid before delivery.
