| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | Paypal, T/T, WU |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Delivery Date: | within 45 days after... |
| Brand Name: | HEKING |
| Operating Weight Class: | 35,000-36,000 kg heavy-duty amphibious platform | Working Reach Range: | Maximum digging reach up to 15.5 m long-reach configuration |
|---|---|---|---|
| Standard Bucket Capacity: | 0.5 m³ optimized for long-reach dredging control | Engine Specification: | Isuzu 6BG1TRP-03 / Mitsubishi 4M50 turbo diesel options |
| Rated Power Output: | Up to 118 kW at 2000 rpm for continuous heavy operation | Hydraulic System Type: | Dual variable plunger pump system, 32 MPa pressure |
| Travel Drive Configuration: | Four DOOSAN TM40VC travel motors for stability | Pontoon Structure Size: | 9.6 m × 1.8 m × 1.77 m high-buoyancy steel pontoons |
| Ground Pressure Rating: | Approx. 0.14 kg/cm² for soft soil and floating work | Optional Equipment: | Additional pontoons and spud anchoring for deep water |
Extra-long working reach for deep and wide water channels
Heavy-duty structure designed for continuous dredging operations
Proven Isuzu and Mitsubishi engines ensure global service availability
High-efficiency hydraulic system supports precise long-reach control
Four-motor travel system enhances flotation stability and maneuverability
Low ground pressure minimizes environmental impact
Reinforced pontoon design ensures safe floating performance
Modular configuration adapts to deep water project requirements
Suitable for infrastructure, government, and EPC contractors
The HEKING HK300SDA amphibious excavator is a 35-ton class long-reach amphibious excavator specifically engineered for deep-water dredging, wide river engineering, and large-scale wetland construction projects. Designed for demanding applications in Europe and the Middle East, this model combines extended reach capability with exceptional floating stability and heavy-duty performance.
At the foundation of the HK300SDA is a reinforced high-buoyancy pontoon undercarriage, purpose-built to support long boom and arm configurations. With pontoons measuring up to 9.6 meters in length and 1.8 meters in width, the machine maintains excellent balance and flotation even when operating at maximum reach. The low ground pressure of approximately 0.14 kg/cm² allows the excavator to work efficiently on soft mud, silt, marshland, and submerged terrain without excessive sinking or soil damage.
Power is delivered by internationally recognized diesel engines, including the Isuzu 6BG1TRP-03 and Mitsubishi 4M50 turbocharged engines, producing up to 118 kW of output. These engines are widely used across global construction markets and are valued for their durability, fuel efficiency, and ease of maintenance. This makes the HK300SDA particularly suitable for overseas projects where long-term reliability and service accessibility are critical.
The hydraulic system features a Doosan T5V112 dual variable plunger pump combined with a PARKER AV280 control valve, generating a working pressure of up to 32 MPa. This configuration ensures smooth, precise control of the long boom and arm, even during extended dredging cycles. Operators benefit from stable motion, accurate positioning, and consistent digging force when working at depths exceeding 10 meters.
With a maximum digging reach of approximately 15.5 meters and a maximum digging depth of over 10.8 meters, the HK300SDA is ideal for large river dredging, port maintenance, flood control channels, and deep wetland excavation. The standard 0.5 m³ bucket is carefully matched to the long-reach setup, providing efficient material handling while maintaining machine stability.
Mobility is handled by a four-motor travel system using DOOSAN TM40VC motors, offering improved traction and control during floating and shoreline transitions. The slew system operates at a controlled speed of 11 rpm, allowing precise alignment during dredging and loading operations. Reinforced chains and structural components further enhance durability in abrasive and submerged working conditions.
For projects involving deeper water, stronger currents, or higher stability requirements, the HK300SDA can be equipped with additional pontoons and a spud anchoring system. This optional configuration allows the excavator to maintain a fixed working position, improving safety and efficiency during long-reach operations.
From a procurement standpoint, the HK300SDA is optimized for export delivery and project-based purchasing. Standard payment terms include 30% T/T down payment and 70% before delivery, with a production lead time of approximately 45 days after deposit receipt. This makes the machine suitable for EPC contractors, rental fleets, and government-funded infrastructure projects operating under strict timelines.
HK300SDA Specification:
| Total Weight | 36000kg |
| Standard bucket capacity | 0.5m³ |
| Boom length | 8600 |
| Arm length | 6260 |
| Chain strands per side | 3 |
| Engine model | Mitsubishi 4M50-TLC3J |
| Type | inter-cooled turbo |
| Power | 118kW/2000rpm |
| Max.torque | 620N m / 1500rpm |
| No.of cylindar | 4 |
| Displacement | 4.899L |
| Type | Variable plunger pump |
| Max.displacement | 2X2800px3/r |
| Max.flow | 20L/min |
| Working pressure | 32Mpa |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Slew speed | 11rpm |
| Min.slew radius | 3554mm |
| Max.travel speed high/low | 3.3/2.17km/h |
| Gradeability | 0.7 |
| Tracktive effort | 382.4kN |
| Max.digging force of bucket | 122.85kN |
| Max.digging force of arm | 97.64kN |
| Ground pressure | 0.14kg/cm2 |
| Fuel tank capacity | 376L |
| Hydraulic tank capacity | 219L |

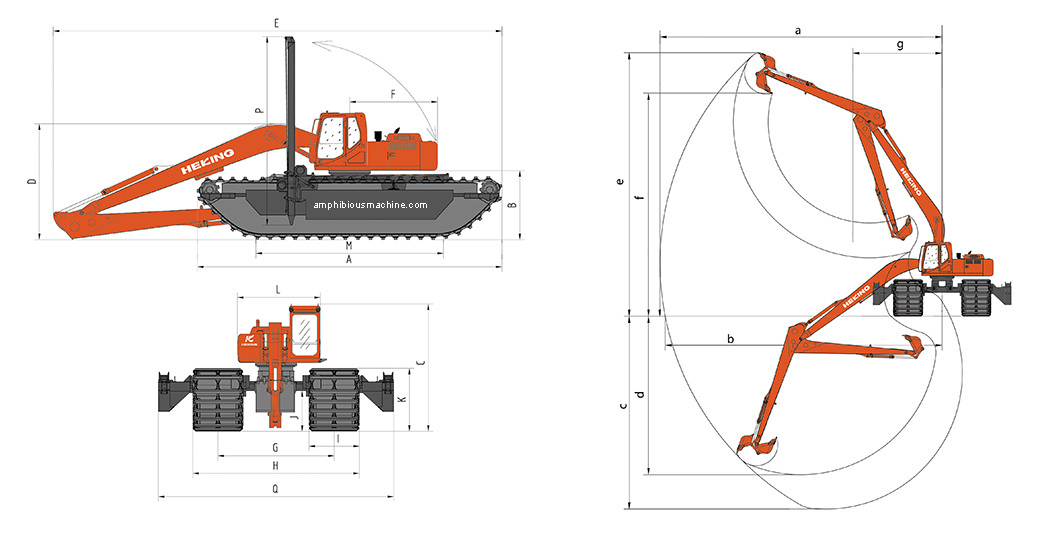

| Item | |
| Length of pontoon | 9632 |
| Ground clearance of platform | 1936 |
| Overall height | 3759 |
| Boom transport height | 3379 |
| Overall length | 14330 |
| Rear swing radius | 2800 |
| Track gauge | 3725 |
| Overall width Min/Max | 4719/5519 |
| Width of pontoon | 1620 |
| Min.ground clearance | 1126 |
| Height of pontoon | 2050 |
| Width of upper structure | 2622 |
| Ground length | 5300 |
| Item | |
| Max.digging reach | 15426 |
| Max.digging reach on ground | 15203 |
| Max.digging depth | 10858 |
| Max.vertical digging depth | 10420 |
| Max.digging height | 14101 |
| Max.dumping height | 11889 |
| Min.front slewing radius | 4884 |
| Engine | Mitsubishi 4M50-TLC3J |
| Pump | Doosan T5V112 |
| Valve | PARKER AV280 |
| Swing motor | Eaton 11020268501 |
| Travel motor | DOOSAN TM40VC |
| Travel motor no. | 4 |
HEKING Amphibious Excavator Packaging & Shipping
HEKING Amphibious Excavator Certifications
Q1: What makes the HK300SDA different from standard amphibious excavators?
A: The HK300SDA features a long-reach boom and arm, allowing excavation at greater depths and distances while maintaining floating stability.
Q2: Is this model suitable for deep dredging projects?
A: Yes. With over 15 meters of digging reach and optional spud anchoring, it is designed for deep-water dredging applications.
Q3: Are spare parts and service available in Europe and the Middle East?
A: Yes. The engine and hydraulic components are globally recognized and widely supported.
Q4: Can this excavator be used for government or port authority projects?
A: Yes. Its heavy-duty configuration and long-reach capability meet common infrastructure tender requirements.
Q5: What is the standard delivery lead time?
A: Production is typically completed within 45 days after receiving the down payment.
Q6: Is the HK300SDA suitable for rental or fleet deployment?
A: Yes. Its durability and modular configuration make it suitable for long-term rental and fleet use.
Q7: What payment terms are offered for bulk orders?
A: Standard terms are 30% T/T in advance and 70% paid before delivery.
Category: Amphibious Excavator
